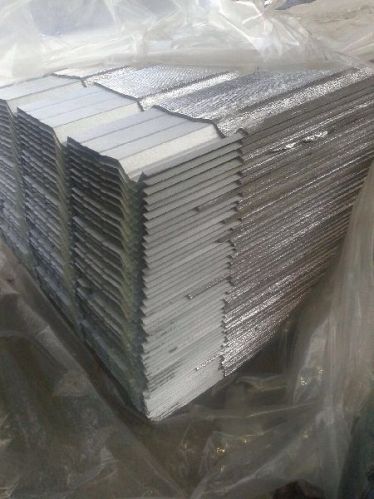

Insulation Reflective Sheets, for Shipping, Length : 10-13cm, 17-20cm

Listing ID #3630045

Get Latest Price

ApplicationShipping
Thickness100-200mm
Length10-13cm, 17-20cm
Shaping ModeSquare
reflectivity97%
Supply Type Manufacturer, Supplier

Preferred Buyer From : India only

View More Details

Send Enquiry

Product Details

Hi-Roof Make Cross Linked Poly Ethylene Technical Data Sheets

Property	INSUshield Typical Values			Test Method
Material Description	Fire retardant, closed cell, chemically crosslinked polyethylene
Material Form	Rolls, sheets and tubing
Application	Thermal & Acoustic Insulation
Area of applications	A/c Humidification ducts, 'Spandrel insulation, Underdeck, Hot & Cold water pipelines & acoustic flooring
Operating Temperature	-40 ^oC to + 115^oC
Thermal Stabilty	Less than 5% shrinkage at 90^oC for 24 Hours
colour	Grey
Nominal Density (Kg / m³)	33±3 Kg/m³			BS4370 Part 1
Thermal Conductivity (W / m^o K)	Mean Temperature (oC)	W/moK	K cal / hr m oC	IS : 3346 / 1980
	0^oC	0.0318	0.0273
	23^oC	0.0328	0.0282
	45^oC	0.0383	0.0329
Water Absorption	<2%			ASM D 1056-98
Water vapour permeance (28 days)	<6x10³ ng/Pa m5			ASTM E-96
Water Vapour Transmission
(7 days)	Negligible
(28 days)	<1100 µg /m²S
Water Vapour Resistance Factor (µ)	Plain	>11000		DIN 52615
Water Vapour Resistance Factor (µ)	Aluminium foil face one side	>14000		DIN 52615
Tensile strength (N/m²)	Min. 25			BS 4370 Part 2
Dimensional Stability (RH-60%, Temp 35oC for 24 hrs,)	No Visible Changes Observed			BS 4370 Part 1
Volume perentage of closed cel	>90%			BS 4370 Part 2

Comparison Of Insureflector With Fiberglass

Parameters	Insureflector (Insufoam & Insubble)	Fiber Glass
Working base	Reflectivity	Condensivity
Fire charactereristics	FR Grade Class"I" & Class"O"	Non FR
Tensile Strenth.	Excellent	No tensile strenth as it is loose fibres
puncture & tear resistance	Excellent	no resistance
Chemically inert	Unaffected by alkalis, alcohols, detergents, petrochemical products & most acids	affected by chiemicals
Non-Fibrous	Non irritant	irritant
Installation	Easy	Time Consuming
	Economical	Expensive
Non Toxic	Non toxic	Toxic
Non fungus	Antimicrobial	Poor
Ease of Use	Not required any type of extra support like wire mesh or additional fasteners	Required wiremesh and fasteners to install
water absorption	Not absorb	Very high as it is loose fibers
weight	Low weight cause less weight on structure	More weight
Life of Product	Very long	Limited
surface finish	Smooth & uniform	Saggy
Pricing	Lower than Fiber Glass	Wiremesh & fastners charged extra
