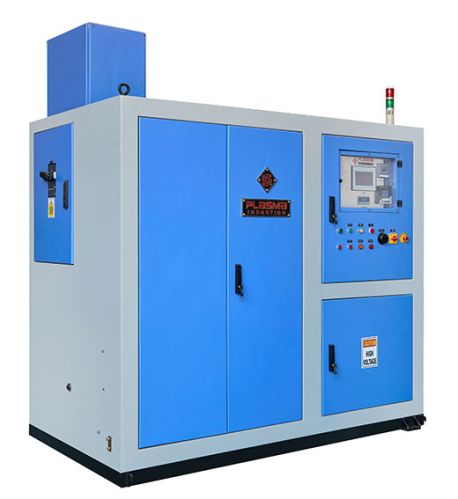

100-300kg Metal Electric E-50 Melting Furnace, Automatic Grade : Automatic

100% Solid state modified advance IGBT design with precise power control. Encloser built from 2.5 mm thick Mild steel sheet with single welded body structure with powder coating. Heavy duty HOT-POT with suitable capacity with manual as well as Hydraulic Tilting mechanism. De-mineralised Water circulation unit with Plate Type (Alfa Laval) heat exchanger, water pump (S.S Body) & necessary pressure and temperature gauges along valves.

Product Specification

Power Rating: 450KW TO 1500 KW

Frequency: 1 KHZ to 3 KHZ

Size: 1.5 Mtr X 3.5 Mtr X 1.2 Mtr

Automation: Optional with touch screen.

Molten Metal

• All Ferrous and Non-ferrous

Application

• Foundry
• Steel Plant
• Rolling Mills

Electrolytic Corrosion Resistance Copper Coil

• For Large Coreless Furnace, Plasma Induction Uses Heavy Wall Extruded Copper for Free Standing Strength and Rigidity.
• Each Turn of the Coil is Supported By a Number of Heliarc Welded Studs Bolted to Vertical Support Posts to Guard Against Mechanical Vibration.
• No Clamping is Required and all Joints are Heliarc Welded to Guard Against Water Leaks.
• Run Outs Tend to Freeze Against the Coil Face, Preventing Costly Damages.
