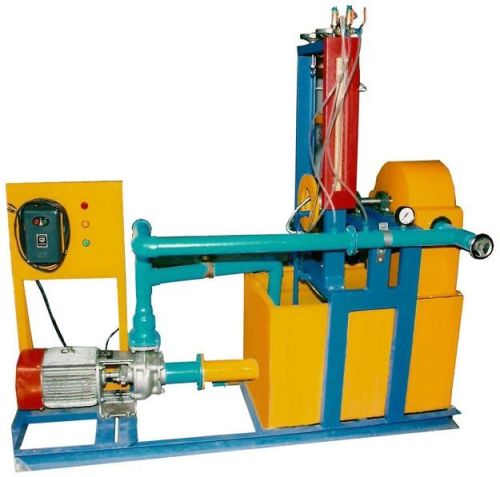

Contact SupplierWe bring forth premium Pelton Wheel Turbine Test Rig in India. Our Turbine Test Rig is specially designed for experimental purposes in laboratories. Our Turbine Test Rig is manufactured as per the international quality standards and premium components to ensure high durability. We make available Pelton Wheel Turbine Test Rig with different technical specifications according to the requirement of buyers. Buyers can acquire Pelton Wheel Turbine Test Rig from us at affordable price.
Experiments :
To study the operation of a Pelton Wheel Turbine
To determine the Output Power of Pelton Wheel Turbine
To determine the Turbine Efficiency
MODEL |
HM 111 (1.33 HP) |
HM 111 (2 HP) |
HM 111 (5 HP) |
---|---|---|---|
Output Power |
1.33 HP / 1 Kw |
2 HP / 1.5 Kw |
5 HP / 3.75 Kw |
Discharge |
300 LPM (Approx.) |
400 LPM (Approx.) |
630 LPM (Approx.) |
Supply Head |
25 m |
40 m |
45 m |
Rope Brake Dynamometer |
Dia 200 mm |
Dia 200 mm |
Dia 300 mm |
Sump Tank |
Capacity 150 Liters. |
Capacity 200 Liters. |
Capacity 300 Liters. |
Water Circulation Centrifugal Pump |
Capacity 5 HP, Three Phase |
Capacity 7.5 HP, Three Phase |
Capacity 15 HP, Three Phase |
Speed |
1000 RPM (approx.) |
||
Impeller |
Material Brass, Bucket type |
||
Nozzle |
Material Stainless Steel/Mild Steel |
||
Spear |
Material Stainless Steel/Mild Steel |
||
Discharge Measurement |
Pitot Tube with Manometer |
||
Control Panel |
Star/Delta Starter, Mains Indicator, MCB for overload protection |
||
The whole set-up is well designed and arranged in a good quality painted structure. |
