Multi Head Automatic Pouch Packing Machine

Automatic GradeAutomatic
Driven TypeElectric
ConditionNew
Power1-3kw, 3-5kw, 7-9kw, 9-12kw
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Availability100-500kg, 1000-2000kg, 2000-4000kg, 500-1000kg
Country of Origin110V, 220V, 380V, 440V
ConditionNew
ApplicationPaper Pouch Packing Machine, Plastic Pouch Packing Machine
Automatic GradeAutomatic
Power1-3kw, 3-5kw, 7-9kw, 9-12kw
Driven TypeElectric
Warrenty5 Years

It is our prime motive is to offer the best quality product and at the best marker prices. We not only say but ion literal sense execute timely deliveries without any delays. Our Multi Head Automatic Pouch Packing Machine is economically priced.
More about Multi Head Automatic Pouch Packing Machine :

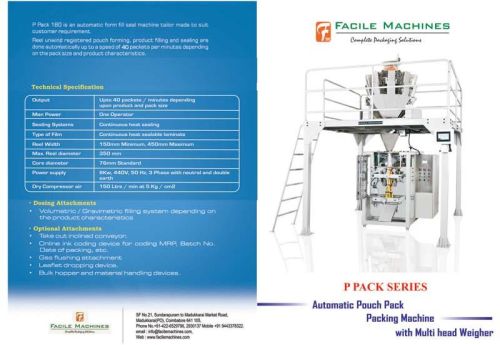

P Pack 180 is an automatic form fill seal machine tailor made to suit customer requirement.
Reel unwind registered pouch forming, product filling and sealing are done automatically up to a speed of 40 packets per minutes depending on the pack size and product characteristics.

Dosing Attachments : Volumetric / Gravimetric filling system depending on the product characteristics.
Optional :

Take out |Conveyor.
Online ink coding device for coding MRP, Batch No. Date of packing , etc.
Gas flushing Attachment
Leaflet dropping device.
Bulk Hopper and Material Handling Devices

Technical Specifications

Output	Upto 40 packets /minutes or more depending upon the product and pack size
Main Power	One Operator
Sealing systems	Continuos heat sealing
Type of film	Continous heat sealable laminate
Reel width	150 mm minimum, 450 mm maximum
Max. Reel Diameter	350 mm
Core Diameter	76 mm standard
Power supply	6Kw, 440 V, 50Hz, 3 Phase with neutral and double earth
Dry Compressor air	150 Ltrs / min at 5 kg/ cm²
