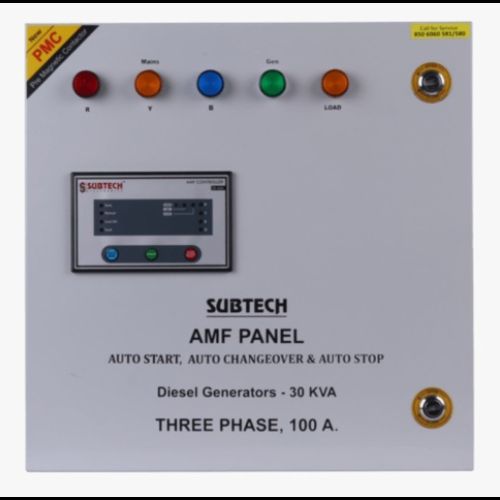

60Hz 100 AMP Three-Phase Automatic AMF Panel, Color : Silver or Grey

Name: 100 AMP Three-Phase Automatic AMF Panel
Price: 29500 INR
Availability: InStock

₹ 29,500 / Piece

Company Information

4.5/5

(19)

Ask for more detail from the seller

Report incorrect details

Features of this panel:-

Operating Volt: 140- 280 VAC (P-N)
Contactor coil activates only for 1 sec
Automatic load transfer among Mains and genset
Auto Start/Auto Stop the Genset when Mains fails/restores
Mains input: 3 phase, Gen input: 3 phase
LED Indications for mains (R-Y-B), gen ON, load ON, mode & fault
Minimum changeover time to protect sensitive equipment
Mains restore delay time: 5 sec, Cranking time: 3-5 sec., Cool down time: 10 sec
Gen output delay time: 8-10 sec, 3 cranking attempts for genset with 15 sec intervals
Microcontrolled based system with Electrical interlocking
Audio visual alarm on common Genset faults
Soft button for Auto/Manual mode selection, manual start/stop
Battery charger inbuilt
Compatible with new electronic controller-based and old key-type genset as well.
Three pole and four pole available
Current rating 63 Amp. to 150 Amp., suitable for upto 63kVA genset
Fabrication: Powder Coated GI Box, Wall mounting, compact size
Works well on low/high voltages, no chattering or coil burning, smooth switching
Long life and maintenance free
Heavy duty DMC connection terminal block
Screw tight connection for 63 A. and ring type thimble for 100 and 150 A.
Provision for Remote operation (auto/manual, start/stop).
