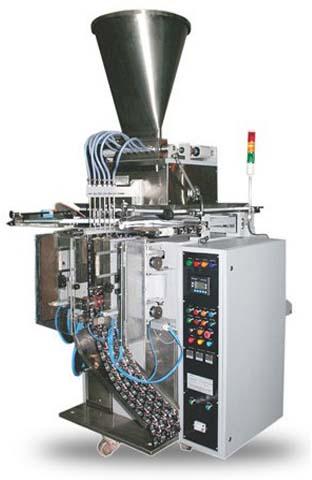

Contact SupplierMulti Track Sachet Filling and Sealing Machine
Most commonly used for filling and sealing liquid and paste like shampoo, sauce, pickle, chutney, oil, glue, gel, scrub etc, . This Multitrack sachet packing machine works with piston or solenoid valve as filler to highly precise quantity to be filled. It is highly efficient with high speed, low power consumption and low rejection rate. It can be used to fill and seal small pouches for powders, commonly used in medicine or ayurvedic powder
Sealing Style | Four Side Seal |
Speed | 50-60 Strokes / minute ( Varies according to product type and quantity to be filled ) |
No. of Tracks | Depends upon the width of the pouch |
Packing Material | Laminate with heat sealable layer on one side |
Product To Be Packed | Liquids / Pastes within doable viscosity range |
Filling Capacity | 5ml-200ml |
Filler Type | Piston Filler / Solenoid Valve |
Power Consumption | 6KW Approx. |
Main Motor | 2.2 KW, 3 Phase, 415 Volts |
Sealing Drives | Mechanical – Cam driven with individual sealing jaw setting |
Max. Length of Pouch | 200mm |
Max Roll Width | 600 mm max. |
Max Roll Dia | 450mm. max. |
Reel Core I.D. | 150/76 mm |
Perforation and Cutting | As per customer requirement |
Laminate Roll Unwind | Manual |
Laminate Draw Off System | Through Clutch/Brake |
Control Panel | Air Cooled with all applicable standards |
Contact Parts | SS 316 |
Batch Cutter Operation | Pneumatic |
Mat Format | As per Requirement |
Temp Controller | PID Based |
Electrical Spec. | Main Motor – 2.2 KW, 3 Phase, 415 V |
Layout Dimensions | Length 3200 mm, Width 2600 mm, Height 2100 mm |
Machine Weight | Net Weight 1500 kgs., Gross weight 2000 kgs. |
Air Compressor | 3HP, Pressure 6kg/cm sq. |
Scrap Rate | Less than 2%* |
Weight Variation | Within +/- 1%** of the filled quantity |
Machine Setting | Touch panel screen |
Machine Color | Monshell Grey – Powder coated. |
Safety | Machine Covered by Acrylic Sheet |
Special Features | High Speed, Low Noise, Low Power Consumption, Accuracy, Reliable operation, Durable, Specially used for spice packing |
