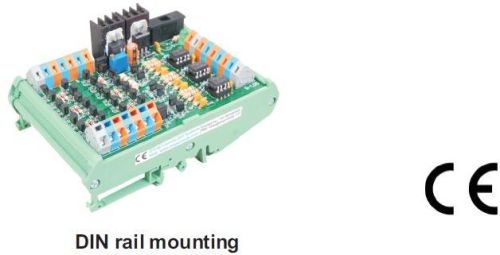

1000 KHz Encoder Splitter

Encoder Splitter 1000KHz Technical Information Function of Encoder Splitter: Encoder splitter receives six signals from increamental encoder or simulated encoder output from servo drive and converts these signals in to two sets of encoder signals .The output signals are optically isolated from the input signals. Features: Input signals 3-10 or 10-30VDC Sink Source Push pull Open collector (Transistor) outputs. Supply voltage 24-30 VDC@1Amp Output pulse voltage 51024 VDC as per customer̢۪s requirement. Each output can drive150mA load. Din rail mountable
