GENERAL INFORMATION | |

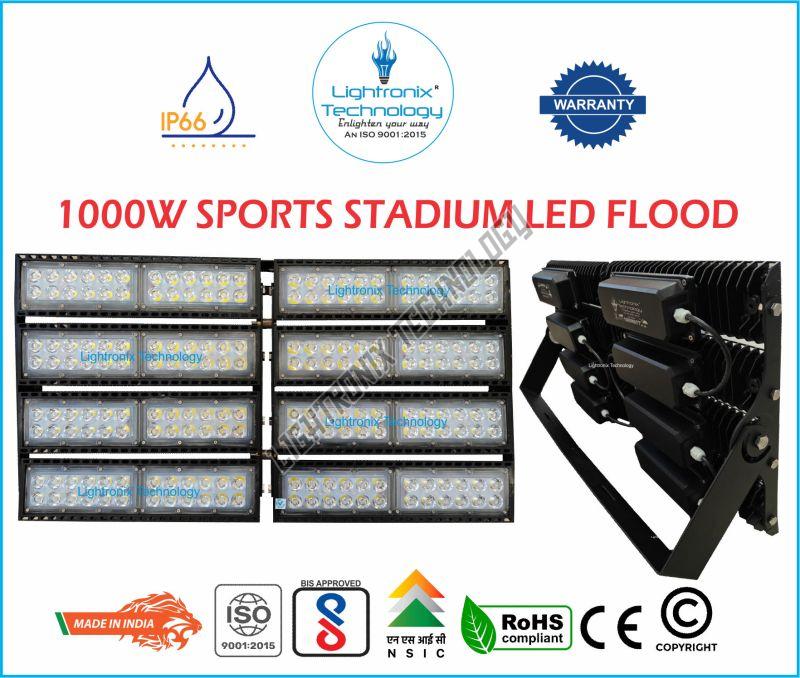

Order Code | LT-1000WFL-SPORTS (200W TO 2000W AVAILABLE) |
Make | Lightronix Technology |
Country of Origin | INDIA |
Lighting Source & Type | SMD 5050 LED |
Number of LED | 192 |
OPTICAL PARAMETERS | |
Led Beam Angle | 15,30,45,60 degree |
CRI (Color Rendering Index) | >80 |
LED Life Span | >60000 Hours |
Color | White |
Color Temperature | 6500K |
Led Voltage/Current | 6.2V/750mA |
LED Make | Bridge lux |
Optical Lens | 15,30,45,60 degree Polycarbonate lens |
Luminous Efficiency | 170 Lm/W |
Total Lumens | 170000(±5%) |
Optical Efficiency | >93% |
Thermal Efficiency | >90% |
Vertical area Output | >300ft |
Radius Area Output | 600-1000ft |
ELECTRICAL PARAMETERS | |
Wide Input Voltage Range | 108-305VAC |
Operating Frequency | 50/60HZ |
Power Consumption | 1000 Watt (200W TO 2000W AVAILABLE) |
Power Factor | >0.97 |
THD | 90% |
Supply Phase | Single Phase Supply |
Over voltage Protection | 440VAC Protection (48 Hours) |
Under voltage Protection | 108VAC |
Auto cutoff Voltage | Lower Side310VAC |
PCB INFORMATION | |
PCB Thickness | 1.6mm(±5% Tolerance) |
PCB Material | Pure Aluminum-Copper |
Copper Layer Thickness | Standard 0.35 Micron |
Copper Conductivity | >1 Watt |
PCB Size | 148x45mm – 16 PCB |
MECHANICAL PARAMETERS | |
Housing Material | Aluminum Pressure Die Casting |
Housing Color Type | Metal Powder Coated |
Housing Shape | Rectangle |
Total Luminaries Weight | 14.92 Kg |
Luminaries Size | 800×410 ×100 mm3 |
Mounting Device | Bracket |
Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
Glass Type | PC Lens cover |
Cable Entry Option | PG7 Cable Gland with Rubber Washer |
Screw Type | Stainless Steel Screw |
Gasket Type | Silicone Rubber Gasket |
IP Rating | IP66 |
Impact Rating | IK08/IK10 |
Marking Type | Laser Marking/Engraving |
