1000ton Grain Storage Steel Silo, Certification : ISO BV CE

                                                                     1000ton grain storage steel silo



Product Description





1, What’s the application of  grain storage steel silo?



The grain storage steel silo is used to store grain, seed, feed, cement, coal and other granular or powdered materials. Popular uses for grain storage silo include, Temporary Transit, Raw Material, and Grain warehouses. Current applications of the grain storage steel silo is to provide efficient and affordable storage solutions for grain warehousing, alcohol plant, flourmill, oil mill, starch factory, feed mill, malt factory, distilleries, seaport, farm, and grain-processing centers, etc.

(Grain including:Wheat /corn /soybean /sorghum /buckwheat /cereal /paddy /millet /bran /rice /peas /beans /rapeseeds /beet seeds /peanut /rye)



 2, What’s the features of the grain storage steel silo?

1) The bottom of grain silo is made of steel hopper, and supported by H beam

2) Hopper bottom grain silo are famous for its automatic discharging process.

There is one steel cone on the bottom of silo, so , the grain inside silo could unload automatically

due to gravity, and very efficient, grain can flow out from the silo, without need power.

3) 2 kinds of angle-45 degree and 60 degree

4) Hopper bottom grain storage silo capacity is for 3t-1250tons.



 3, What’s the advantages of grain storage steel silo ?

1). Lower basic cost with lightweight, low request for foundation, low consumption of steel.

2). High degree of standardization.

3). Simple, easy and efficient to install within a short amount of time.

4). Easy to understand . The bolted silo is equipped with relevant accessories.

5). Easy to maintain. As the parts of the silo are connected by standard bolts.

6). Low cost and long tenure of use.and its life span can reach 30-50 years.

7). Hopper bottom silo advantage is can natural flow





 4, What’s the silo structure?

1. Silo Roof

Roof is made up of radiated beam, roof cover board, tension ring, ventilator scoop, roof cap, etc.

The space age construction technology, which is adopted in the design of the silo framework, can ensure the stability of silo under the large span. There is a guardrail around the silo eaves and there is also a manhole on top of the roof.



2. Silo Body

The silo body is made of high quality hot-dip galvanized steel sheet corrugated by special equipment, equipped with standard hole, connected by normal and high strength bolt.

Include the wall plate, column, manhole, roof ladders and so on.

3. Silo hopper bottom

The hopper is composed of column, ring beam, hopper sheet lacing bar etc.

The column is made from national standard H beam steel , improving the safety and reliability of the steel structure. With hopper angle of 45degree and 60 degree.

60degree and 45degree silo hopper:





Friendly tips:

For 45degree hopper silo, it's used for storing wheat, corn, soybean, rice etc. heavy granular grain;
For 60degree hopper silo, it's used for storing animal feed, wood pellets, plastic pellets, paddy etc. fine materials.
45degree hopper silo is cost-saving than 60degree hopper silo with same capacity.

Our Services





5,  How the silo installed ?



The installation of silos can be carried out by different ways.

*If the client wants to install silos by themselves, we could offer detailed instruction, and we'll give our quickest response to deal with any question in the process.

 *We could also send our engineer to supervise the installation process. The client could find local workers for the installation work and our engineer will help them during the process.

*If the client needs, we could send our installation team for the whole installation issue.







Contact Information





Any inquire about silos, pls contact me!

We have different silos to store grain, cement, feed, flour, pellets etc.

TSE silo capacity from 3ton to 12000ton, if you need, just tell me!



Contact Person:  Miranda Feng                          Skype:   shelley9015 Telephone:  0086-538-5367256 Mobilephone:  0086-18653877125 Fax:  0086-538-5367222 Address:  Steel Market Area,Daiyue Area,Taian city,Shandong Province, China Zip Code:  271000





Welcome you visit us anytime!

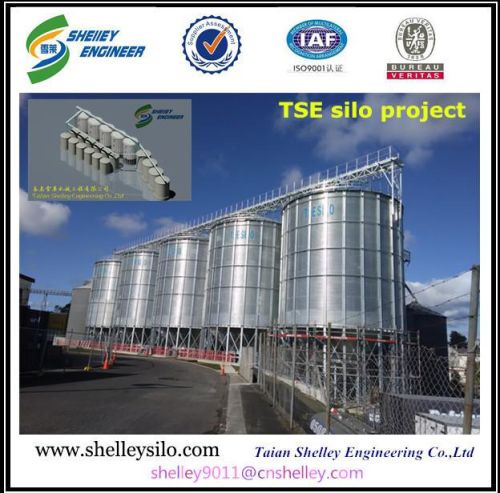

Some projects share with you:
