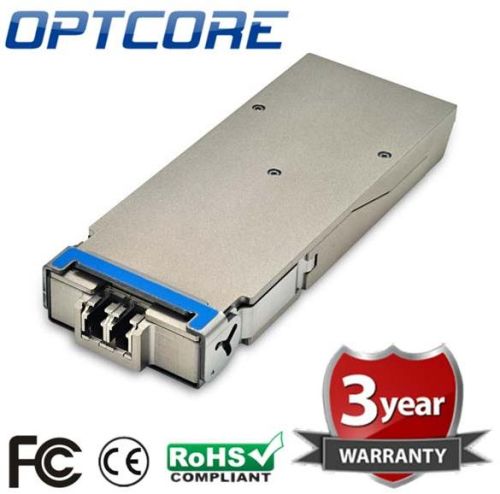

100g Cfp2 Lr4 10km Cwdm 1295-1309nm Optical Transceiver

We offer 100g Cfp2 Lr4 10km Cwdm 1295-1309nm Optical Transceiver.
Features
• Duplex LC receptacle optical interface
• Single +3.3V power supply
• Hot-pluggable
• Operating optical data rate up to 112Gbps
• Operating electrical serial data rate up to 27.952493Gbps
• 4 parallel electrical serial interface
• AC coupling of CML signals
• PIN ROSA
• Low power dissipation(Max:9W)
• Built in digital diagnostic function
• Operating case temperature range:0℃ to 70℃
• Compliant with 100GBASE-LR4 and OTU4
• MDIO Communication Interface
• Compatible with all kinds of commercial ONT
• Temperature range: 0°C to +70°C
Specifications
• Form Factor: CFP2
• Data Rate: 100Gbs
• Wavelength: CWDM 1295~1309nm,
• Fiber Type: SMF
• Max Distance: 10km
• Communication Interface: MDIO
• Operating Temperature: 0~70ºC
• Application: Local Area Network(LAN), Wide Area Network(WAN), Switch to router interface, ITU-T OTU4 OTL4.4 applications
Standards
• Compliant with IEEE 802.3ba
• Compliant with CFP2 MSA hardware specifications
• Compliant with CFP2 MSA management specifications
• Compliant with ITU-T G709Y.1331
• Compliant with RoHS
Ordering information
• OEM Part Number: CFP2-100G-LR4
• Optcore Part Number: CFP2-100G-LR4
• Description: 100Gbs CFP2 LR4 Transceiver,CWDM 1295~1309nm,10km
