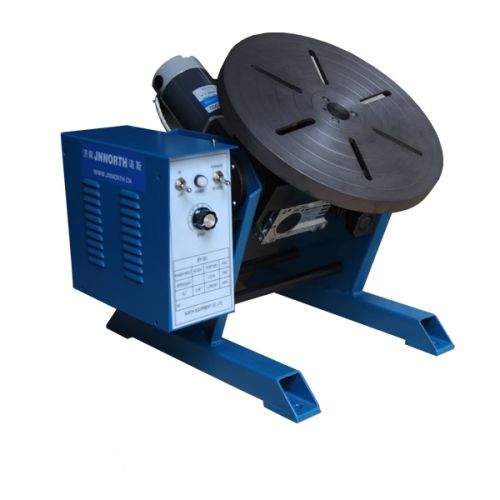

100kgs Circular Welding Machine, Brand Name : north

By-100ca welding positioner
product description
characteristics:
stepless adjustable speed
the main shaft can be turned 90 °clockwisely and anti-clockwisely,to fit any welding angle .
The turning structure of worm and gear has the function of self-lock.
Special design of anti-electromagnetic ,which reduces the high frequency interference of tig’s welding, and can improve the welding quality effectively.
The adjustable-welding gun support can be furnished to fix the position of the welding torch.
The track and air-powered tip can be furnished to fix the position of the welding torch.
The track and air-powered tip can be furnished to achieve the function of self-holding to the workpieces.
Track can be extended according to your requirements.
specifications:
model
by-100ca
input power
ac110v220v 5060hz
capacity
100kg50kg
table dimension
345mm
table height
415mm
rotation speed
0.5-3.51-72-15 rpm
tilt angle
0-90°
tilt mode
manual
rotation motor
120w
rated eccentricity
100mm
rated center of gravity
100mm
control mode
over dimension
500*470*415mm
adjustable chuck
d-200 d-300
packaging & shipping
packing:plywooden box
shipping:7-10 days after the order.
