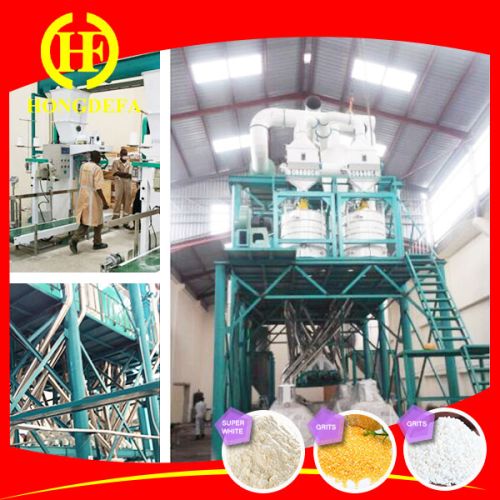

100T Per 24h Maize Grinding Machine Production Line

Main machine:
1.roller mills
1)the partitioned paneling and swing-out feed module guarantee ideal
access to the feeding and grinding rolls. This makes residue-free
cleaning possible.
2) a pulse generator automatically adjust the feed material at the entrance door
2.plansifter
1) material: high-strength alloy steel
2)up and down sifter circles with steel plate overall by bending
3)transmission system using spring force component institutions
4)sieve frames of wood coated with synthetic resin,without backwire
5)all the inside walls as well as the doors are provided with high-grade insulation
6)vertical and horizontal clamping system
3.degerminator :
dry degermination with low fat content.
Technology. Multi-faceted sieve tube design,the screen the high-quality stainless steel nitriding treatment
remark:
1．production capacity: 100t(maize)24h
2．products variety:
1)maize fine flour, all through 44 mesh (400micron) sieve
2) maize germ,  coarse fodder.
3．extraction rate:
1） super maize meal: 65~80%
2)  chops:20-35%
4．workshop dimension: 36×10×13m(l×w×h)
5．power supply: about 323kw.
6．total weight of the equipment: 53t.
7．container：3*40’ (common one suit for transportation).
8．install time: two months.
