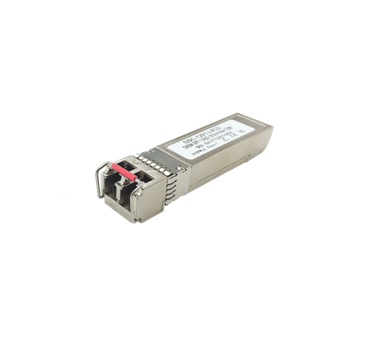

10G SFP+ SR4 300m Optical Transceiver

10g sfp+ sr 300m optical transceivers are designed for use in 1-gigabit and 10-gigabit ethernet links over multimode fiber. They are compliant with sff-8431, ieee 802.3-2012 10gbase-sr/sw and 1000base-sx. Digital diagnostics functions are available via a 2-wire serial interface, as specified in sff-8472.  the laser drivers biases and modulates a 850nm vcsel laser, enabling data transmission up to 300m over multi-mode fiber through an industry standard lc connector. In the receive side, the 10gb/s optical data stream is recovered from a pin type photodetector .this module features a hot-pluggable sfi compliant electrical interface. Features sfp+ multi-source agreement compliant monitoring interface compliant with sff-8472 single +3.3v power supply low power dissipation lc duplex receptacle compliant with ieee802.3ae 10gbase-sr 850nm vcsel and pin receiver for 300m reach rohs6 compliant operating temperature  commercial temperature: -5℃~+70℃ recommendedoperating conditions parameter symbol min type max unit supply voltage vcc 3.13 3.3 3.47 v total current icc 300 ma power dissipation (max) pmax 1.0 w operating case temperature range tc -5 70 °c storage case temperature range tstg -40 85 °c data rate dr 10.3125 gbps.
