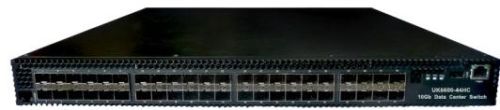

10gb Data Center Switch

We are offering data center switch.
���10gb data center switch uk6600-44hc provides 44 full 10gb sfp optical ports, 1 1g electrical port and 1 console port, and all 10gb optical ports allow the maximum flexibility, which is specifically designed to handle demanding network requirements for the data center with low latency. It enables 10gb to be deployed in the data center, which can significantly improve server utilization and consequently increase data center power efficiency. This switch provides 1200 gbps high-bandwidth switching, filtering, and traffic management without delaying data, and large data center grade cache to keep traffic moving; also supports fiber channel over ethernet (fcoe) defined as part of the initiative to converge storage and data fabrics within the data center in future sw release, this feature provides the advanced qos, congestion management, and data security required for fcoe; in addition, uk6600-44hc also supports l2 and l3 vpn, dos defense, static routing, rip, ospf, bgp, pim-sm, pim-dm, dvmrp, nat, rstp, mstp, vlan, port security, various storm suppression, acl access control and other functions, very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.
Product key features:
1. 1200 gbps high backplane bandwidth
2. 655mpps packet forwarding rate
3. End-to-end 10gb data center solution
4. Dual load-sharing internal power modules
5. Ultra low latency
6. High density 44-ports 10gb switch
7. Management via snmpv1/v2/v3 and rmon
8. User password protected system management
9. Data secured through ssh
10. Enhanced security through radius and tacacs+
11. Remote network management
12. User-friendly cli via console or telnet
13. Acl-based l2/l3/l4 h/w
14. Data center 10gb aggregation switch
product technical specification:
part model uk6600-44hc
basic characteristics
fixed port 44 10gb optical ports, 1 1g electrical port and 1 console port
backplane bandwidth 1200gbps
packet forwarding rate 655mpps
processor risc 2.5ghz
flash memory capacity 64mb
sdram 1g
address table 32k
queue buffer 64mb
product features
spanning tree support stp�rstp�mstp
support pvst/pvst+
vlan support port-based vlan, mac-based valn
support 802.1q tag vlan
support super vlan
support private vlan
support gvrp dynamic vlan configuration
support qinq and flexibility qinq
support voice vlan
flow control standard-based ieee 802.3x flow control
using ieee 802.1qbb priority control flow support car function
broadcast control suppress broadcast storms, reaches a critical point to stop sending
multicast control igmp snooping multicast packets automatically monitoring
qos traffic scheduling (sp, wrr, drr)
8 queues per port
advanced traffic management- metering, egress shaping
l2 standard ethernet bridging
port/subnet/protocol-based vlan
spanning tree (stp/ rstp/ mstp)
802.3ad link aggregation
*oam (efm, cfm, y.1731)
l3 ipv4 routing / *ipv6 routing
ospf, bgp, vrrp, ecmp, pim
*is-is, *rip
mpls rsvp-te and path protection and local repair (head-end role)
exp-based qos
mef mef-6, mef-10, mef-16
multicast igmpv1/v2/v3, pim-sm/ssm
igmp snooping
multicast vlan registration (mvr)
management serial / telnet (cli)
rmon
snmpv1/v2/v3
data center fiber channel over ethernet (fcoe)
ieee 802.1 qau congestion noti�cation
ieee 802.1 qaz enhanced transmission selection
ieee 802.1 qbb priority-based flow control
port binding each set of a maximum of 8, while supporting 128 groups
lacp dynamic or static aggregation
port mirroring support based on traffic classification mirroring, support port mirroring
stacking the hard stack 16 , soft stack 32
using clustering techniques, with a unified centralized management of ip address, address resource saving
routing management static routing rip v1/v2, ospfv2, beigrp (compatible with cisco eigrp), bgpv4, isis, bgp
anti-virus intelligent routing function
policy routing support ip-based policy routing
proxy function support proxy arp, dns proxy
redundancy backup support for vrrp, hsrp hot standby router protocol
characteristics of dhcp support dhcp server, dhcp client and dhcp relay
the nat function support the static or dynamic nat address translation function
security features ieee 802.1x port certification, pki certification port
security (port security) function
hardware support for ip acl�mac acl�vlan acl
hardware support for port-based user ip+mac+vlan id+ user account a variety of factors bundling
support ip source guard
support web interface user authentication
remote radius, tacacs+ certification
user classification management and password protection
network shield technology
safety control technology
policy control list
quality of service ieee 802.1qau congestion mechanism
each port has 8 transmit queue mapping 802.1p 8 priority
wred, wfq, sp and fifo queue scheduling algorithm
best-effort service
differentiated service
strict priority
weighted round robin
first come first served
tos re-marking
traffic shaping (rts)
network management snmp v1/v2/v3
rmon (1,2,3,9group)
telnet
web interface
support for cluster management
support ssh
support for pdp (compatible with cisco cdp)
to support the fan, temperature, system log-level alarms
physical characteristics
dimensions 442mm ã� 316mm ã� 66mm
power characteristic ac 110-240v adaptive, 47-63hz, 1a/230v, rps power supply hot backup
power max. 200w
indicator power indication, system instruction, connecting / transceiver instructions
environment temperature /humidity 0-50 � operation,-40-70 � preservation,0-90% no condensation
