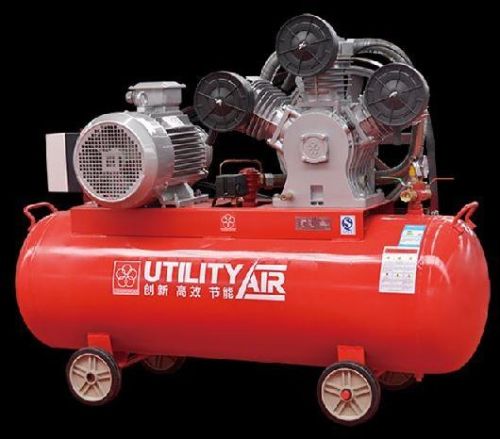

10hp Portable Belt Piston Air Compressor LW10008A

10hp portable belt piston air compressors lw10008a match professional air valve and runner design and efficient intake muffler to reduce noise pollution to the lowest;innovative optimization design of portable piston air compressors make process precise, large displacement, low power consumption. L series technical parameters                                                                                                         model parameters unit lv2008at/s lv3008at/s lv4008at/s lw5508a lv7508a lw10008a air delivery m³/min 0.16 0.24 0.32 0.45 0.63 0.85 air pressure mpa 0.8 0.8 0.8 0.8 0.8 0.8 crankshaft speed rpm 850 1080 1220 1020 1100 1050 cylinder no. 2 2 2 3 2 3 cylinder dia. Mm 51 55 65 65 90 90 piston stroke mm 46 50 60 60 60 60 air tanks l 60 90 100 120 170 170 motor power kw 1.5 2.2 3 4 5.5 7.5 cooling method air cooling whole weight kg 60 70 83 94 120 140 length mm 870 980 1070 1210 1290 1400 width mm 330 380 380 380 500 520 height mm 720 800 840 870 950 1040 certificates.
