10km Man 30km Hill 2Hz Miniaturized 1570nm Eye Safe Laser Rangefinder

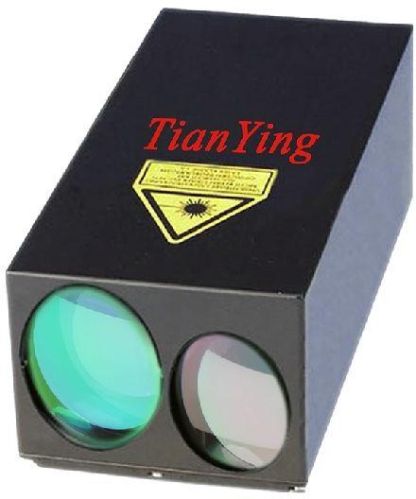

China TianYing TY-LR86 miniaturized 1570nm 30km ~ 40km eye safe laser rangefinder module of 2Hz for ship, measure man 10km. Developed for 750mm f4 lens thermal camera gimbal type targeting system tasked to acquire small, moving targets, hence the 2 Hz measuring rate and the extended range.
The LRF-40km provides 1m accuracy to dynamic targets in extremely compact unit that weighs 850 g, customer enable very easy integration into compact airborne, maritime and land based optronic systems, including camera system, fire-control system etc, it is ideal for 500mm to 1200mm focus cooled thermal camera system.
The model has reached the domestic leading and world advanced level, the price can compete with Europe and North America manufacturers. With its performance, this LRF give you highest performance price rate.
30km ~ 40km 2Hz Miniaturized 1570nm Eye Safe Laser Rangefinder Module Features: 1) Class 1M laser transmitter using highly life OPO mature stable reliable eye safe energy technology. 2) Man 10km and ship 30km~40km range performance due to the use of highly sensitive APD. 3) Miniaturized design (weight
30km ~ 40km 2Hz miniaturized 1570nm eye safe Laser Rangefinder Module Recommended Use: 1) Optronic surveillance and reconnaissance. 2) Target tracking systems and anti-aircraft systems. 3) Fire control systems for land, air and sea targets. 4) For determination of flight altitudes on airports. 5) To measure the distance of ships from the coast. 6) In general for applications of position determination of dynamic objects. 30km ~ 40km 2Hz miniaturized 1570nm Eye Safe Laser Rangefinder Mainly Specification:
Model
TY-LR86
Transmitter
Laser Type
OPO
Wavelength
1570nm
Measuring rate
1Hz continuous, 2Hz burst for 25 seconds. (1Hz typical 50 secs to 3 mins)

Option 5Hz continuous.
Beam divergence
≤ 1 mrad, typical 0.7mrad ~ 0.8mrad
Laser classification
Class 1M. (EN 60825-1:2007)
Extinction Ratio
> 52 dB (100% reflectivity at 1000m target)
Receiver
Detector
Avalanche Photo Diode Detector (APD).
Range data
Ranging capability
≥ 30km(up to 40km) of building/ship/aircraft/large craft in 23.5km visibility;

≥ 18km of 30% albedo 5m² aircraft in 23.5 km visibility;

(>13.7km mountain has been proven in 3km visibility).
Accuracy
≤  +/-1m
Electrical interface
Data interface
RS422
Power
20 - 30V DC
Environmental conditions
Operation Temperature
-40ºC~+60ºC
Mechanical interface
Size
≤ 860 cubic centimeters
Weight
≤ 850g with house
* - Note
* Product design and Technical information is subject to change without notice. ** Depending on the region of sale.
Question: 1, Why many 20km/30km/40km laser rangefinder can not measure tank 10km in standard 23.5km visibility? Because their 20km/30km/40km is theory data or high reflection large target in ideal visibility condition, even reflection need beyond 80% and visibility need beyond 50km. 2, Why many NATO target 10% reflection 12km laser rangefinder can not measure tank 10km in standard 23.5km visibility? Because their 10% reflection is not real performance data, 2.3m x 2.3m NATO target is not real tank, or their NATO target effective size is different; normal 2.3m x 2.3m target real albedo is 50% or more.
About test land standard, normal big target typical 20km LRF with 25km visibility, then, normal this LRF can measure 2.3m x 2.3 target about 15km or more, then, 30% albedo 2.3m x 2.3m target is about 10km ~ 12km.
3, Why many laser rangefinder do not show measurement rate details?
Because max rate and continuous rate technology demand is different, such as max 12.5Hz 10 sec to 60 sec, maybe then 5Hz is max 1 min to 3 min with cycle.
Also, when rate have more different, such as 1Hz-5Hz, 1Hz-10Hz, 1Hz-20Hz, 5Hz-25Hz etc, then their working distance have more different too.
About 1.5µm eye safe laser rangefinder, if 1Hz is 10km, then, normal 5Hz is only balance about 80%~ 85%, normal 10Hz is only balance about  70%~80%, when this LRF laser energy is very low, then attenuation speed will accelerate.
4, Why many laser rangefinder price is very cheap? Because performance is different, for example: one LRF is used for bad cable, messy interface, messy wiring etc, then the LRF cost can reduce, even reduce much, but no warranty on performance.
If used for same performance, then our price is very cheap. that is why many laser rangefinder do not show their real main performance data.
