10m Series Control Valve

We are offering 10m series control valve.
Outline

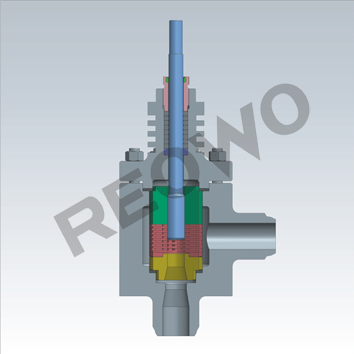

the 10m series unbalanced labyrinth control valve adopts the labyrinth cage and unbalanced trim design. The labyrinth sleeve is composed of cylindrical discs with many coaxially distributed labyrinths. According to different technological parameters of the media, different labyrinth specifications and piling layers are designed to form the cage and the cage divides the whole flow channel into several tiny circuitous or step flow channels, forcing the fluids to continuously change the flow direction and flowing area and gradually reducing t he pressure of fluids, so as to prevent the occurrence of flash evaporation and cavitation and prolong the service life of the trim. The unbalanced single seat is adopted. The trim is suitable for service conditions under which blocked flow will easily be produced and cavitation will be caused. The unbalanced trim is suitable for applications of small sizes and high temperature.
Parameters of control valves
dn 20~450mm
pn class150~2500
applicable temperature range -196℃～570℃
trim features sleeve guided unbalanced trim structure, labyrinth disc cage combination
body type straight-through type, angle type
bonnet type standard type, heat dissipation type, cryogenic type
flow characteristic equal percentage, linear, quick open
shut-off class asme b16.104 v (standard metal seat)
asme b16.104 vi (shut-off soft seat)
pipe connection type flange type, butt welding type
actuator type pneumatic diaphragm actuator
pneumatic piston actuator
electric actuator.
