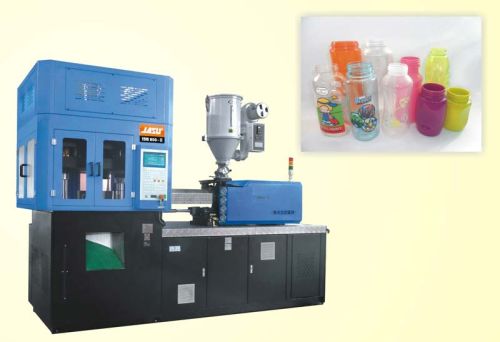

10ml-1000ml Small Plastic Bottle Blow Molding Machine

we are offering 10ml-1000ml small plastic bottle blow molding machine. jasu isb500-2 is a one stage injection blow molding machine (not from performs) for pet, pc and pp containers. the machine is capable of accepting 4 cavities. fully automatic, single step, injection stretch blow moulding machines produce containers from 0.3 litres up to 1 litres. widely used for manufacturing bottles for pharmaceutical, healthcare, food, beverages, cosmetics and other applications.
a 2 station indexing head contains injection blowing and outfeed stations which operate simultaneously in a fully automatic cycle. highly efficient with low energy comsuption.
all machines are built to iso9001 standards and ce certified.
isb500-2 machine parameters
screw diameter: 50mm
screw ld ratio: 23.2ld
screw speed: 0-185rmin
injection weight: 390g
injection pressure: 1700kgcm2
max. hydraulic pressure:140kgcm
plasticizing capacity: 24gs
injection rate: 128gs
blow clamping force: 150kn
clamp tonnage: 600kn
wheel diameter: 500mm
max. height of bottle: 4000mm
open vertical mode trip:430mm
max. pump pressure: 16mpa
motor oil: 18.5kw
electric power: 16kw
tank volume: 400l
dimension of machine: 4.1x1.45x3.1m
machine weight: 5ton
