10p Series Control Valve

The 100 series control valve design features
innovative packing structure design
the top guided structure design
detachable structure design
standard modular design
reading tips
for detailed product information, product animation, please click "contact us",
then visit the company's website, download and reading or contact us directly
outline

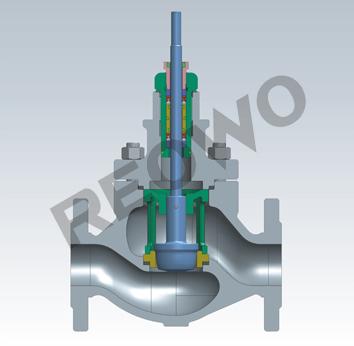

the 10p series single-seat control valve adopts the top guided unbalanced structure, featured by high strength, heavy load, s type flow channel, low pressure drop loss, high flow coefficient wide adjustable range, high flow characteristic precision, etc. This kind of control valve is suitable for applications with relatively low differential pressure with tight shut-off. It is suitable for controlling medium flow or pressure. The cage adopts the press-in type seat design, which solves the problems of difficult disassembly and high leakage of the traditiona l thread screw-in type seat and prolongs the service life. The flow to open design is adopted, and the medium flow direction tends to the opening direction of the valve with good controllability of small opening and low flow characteristic distortion. Special cages with noise reduction and anti- cavitation functions can be offered according to the requirements in different service conditions.
parameters of control valves
dn 15~450mm
pn class150~2500
applicable temperature range -196℃- 570℃
trim features top guided, unbalanced trim, quick disassembly cage structure
body type straight-through type, angle type.
Bonnet type standard type, heat dissipation type, cryogenic type, bellows
flow characteristic equal percentage, linear, quick open
shut-off class asme b16.104 v (standard metal seat)
asme b16.104 v I (shut-off soft seat)
pipe connection type flange type, butt welding type
actuator type pneumatic diaphragm actuator
pneumatic piston actuator
electric actuator
