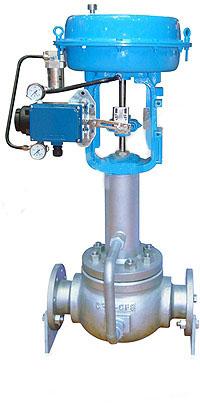

10P60 Heat Insulation Jacket Single-seat Control Valve

The cage adopts the press-in type seat design, which solves the problems of difficult disassembly and high leakage of the traditional thread screw-in type seat and prolongs the service life. The flow to open design is adopted, and the medium flow direction tends to the opening direction of the valve with good controllability of small opening and low flow characteristic distortion. Special cages with noise reduction and anti-cavitation functions can be offered according to the requirements in different service conditions. Compared with the 10P00 Series, the 10P60 Series valves are of heat insulation jacket type, mainly used in applications where media such as paraffin may easily coagulate at normal temperature. Fill the heat insulation jacket with steam to heat the medium and maintain its flow.
Parameters of control valves：
Trim features： top guided
unbalanced trim structure
quick disassembly type structure
Body type： straight-through type
Bonnet type： heat insulation jacket type
Flow characteristic： equal percentage
linear
quick open
Size： DN15-200(12”-8”)
Pressure class： PN1.6、4.0Mpa（ANSI 150、300LB）
Leakage class： ASME B16.104 Ⅴ（standard type seat）
Pipe connection type： flange type
Applicable temperature range： -45C°～ 550C°
Actuator type： pneumatic diaphragm actuator
pneumatic piston actuator
electric actuator
