10pf Series Control Valve

We are offering 10pf series control valve.
Outline

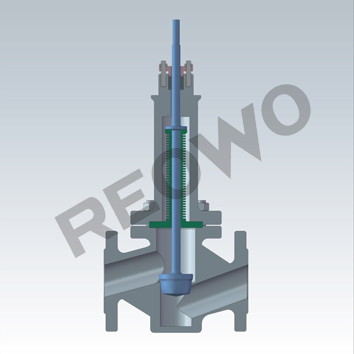

the 10pf series linear motion single-seat lined control valve adopts full fluorine lined body and trim structure to effectively prevent the structure to effectively prevent the corrosion of metal materials in the valve by corrosive media. The metal body cavity is subjected to serrated machining treatment so as to make the lining materials fully fit into the metal and prolong the service life and performance of lining materials. The stem seal is the compound seal of stem seal is the compound seal of f46 bellows seal and v ptfe packing, which can eliminate the possibility of media leaking from the stem to the outside. The unbalanced full lined control valve is especially suitable for very corrosive media under low pressure and normal temperature service conditions.
parameters of control valves
dn 15~450mm
pn class150
applicable temperature range -45℃～150℃
trim features unbalanced plug, lined seat, bellows stem seal
body type straight-through type
bonnet type standard type, bellows type
flow characteristic equal percentage, linear, quick open
shut-off class asme b16.104 v
pipe connection type flange type
actuator type pneumatic diaphragm actuator
pneumatic piston actuator
electric actuator
