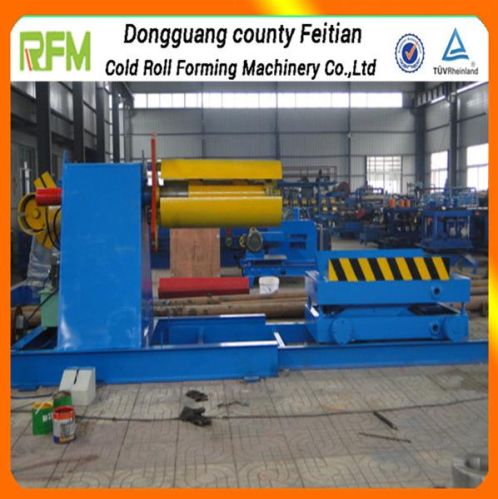

10t Hudraulic Decoiler With Car, Brand Name : RFM

We are offering 10 ton hydraulic decoiler machine.
i. Decoiler machine product
the process of uncoiling steel coils for the roll forming process is critical to the overall quality. having the sheet metal uncoil to faster or to slow will have a serious negative impact on the final profile. one way to reduce and potentially eliminate this is to have the correct coil size and an automated uncoilerdecoiler.
Common problems with incorrect coil handling
pulled skin
oil canning
twisting
nonuniform profile shape
snapping or breaking
reduce coil costs with automated steel coil slitting line
a simple and quick method to reduce costs and improve part quality is to first feed the correct size coil in to the forming line. the most common method of doing this is to cut the master coil in to properly sized coils with a coil slitting machine and equipment.
common benefits of cutting master coils
reduce waste
increase precision of roll forming process
integrated automation software
quick changeover times
increased productivity
having the right equipment in your steel fabrication process will help to reduce your overall costs, increase efficiency's and allow you to reach new markets and more customers.
ii. Decoiler machine paramters
product description
1. Single unrolling machine, one side can put material
2. Adopt automatic hydraulic system
3. Coil weight (max):10000kg
4. Inter diameter: 470mm-520mm
5. Maximal out diameter:1800mm
6. Oil cylinder dia:120mm working pressure: 20mpa (=20tons)
7. Coil width (max.):1000mm
8. Working speed: 0-25mmin
9. Power: 5.5kw
10. Hydraulic power: 3kw
11. Coil car: 10tons
12. The motor power of coil car: 3kw
13. Pressure: 12mpa.
