10t Series Control Valve

Outline

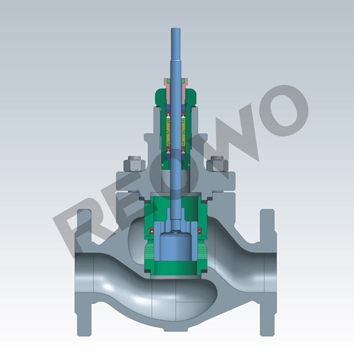

The 10T Series cage single-seat control valve adopts the cage guided structure and pressure balanced plug. It is suitable for applications with relatively high differentia l pressure. The balanced seal ring replaces the upper seat to change the traditional cage double-seat valve structure into the cage single-seat structure. This improvement has greatly enhanced the shut-off class of the cage valve. The plug makes use of the pressure balanced structure, the opening and closing force is low and the media under service conditions with high differential pressure can be controlled through relatively low actuator thrust. It is widely used for fluid control on pipelines of middle and low temperature and middle and low pressure that require good dynamic stability. With such features as good sealing performance, high allowable guiding area, good stability and compact structure, it can realize fast replacement of trims on the line with high maintenance efficiency , saving manpower and time. The balanced plug structure makes sure that the actuator thrust required is the lowest.
Parameters of control valves
DN 15~450mm
PN Class150~2500
Applicable temperature range -30�- 260�
Trim features cage guided type, balanced trim structure, with balanced seal ring structur
Body type straight-through type, angle type.
Bonnet type standard type, heat dissipation type, cryogenic type, bellows
Flow characteristic equal percentage, linear, quick open
Shut-off class ASME B16.104 V (standard metal seat)
ASME B16.104 V I (shut-off soft seat)
Pipe connection type flange type, butt welding type
Actuator type pneumatic diaphragm actuator
pneumatic piston actuator
Electric actuator
