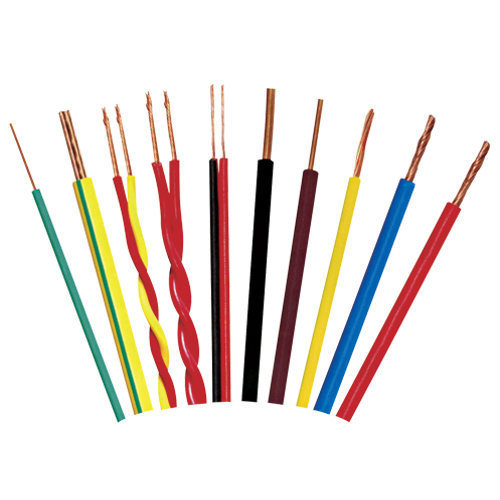

1100V Copper Conductor Single Core Cables

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

We have hired a team of professionals who take care of the entire lot and make sure that it remains protected from air, dust, water and other damaging factors. We are working with a team of deft professionals who manage the entire task proficiently and lay special emphasis on product packaging so as to ensure safe and secure deliveries.

View More Details

Send Enquiry

Product Details

Specifications

Nominal Cross Sectional Area	No. And Size Of Wires	Max.Dc Conductor Resistance At 20 C		Current Rating Bunched & Enclosed In Conduit Or Trunking 2 Cables, Single Phase Ac Or Dc In Amp.		Thickness Of Insulation (Nominal)	Max.Overall Diameter
Sq. Mm.	(*) In Mm.	Aluminium	Copper	Aluminium	Copper	Min. # Mm.	In Mm.
1	41275	----	18.1	----	11	0.7	3.2
1.5	13881	18.1	12.1	12	13	0.7	3.4
1.5	3/0.80	18.1	12.1	12	13	0.8	3.4
2.5	28491	12.1	7.41	17	18	0.8	4.2
2.5	38047	12.1	7.41	17	18	0.8	4.2
4	45659	7.41	4.61	23	24	0.8	4.8
4	7/0.85	7.41	4.61	23	24	0.8	4.8
6	27761	4.61	3.08	29	31	0.8	5.6
6	38169	4.61	3.08	29	31	0.8	5.6
10	20823	3.08	----	40	42	1	7
10	12966	3.08	1.83	40	42	1	7
16	25750	1.91	1.15	54	57	1	8.2
25	41822	1.2	0.73	69	71	1.2	10
35	19177	0.87	0.52	83	91	1.2	11.5
50	19/1.82	0.64	0.39	105	120	1.4	13
