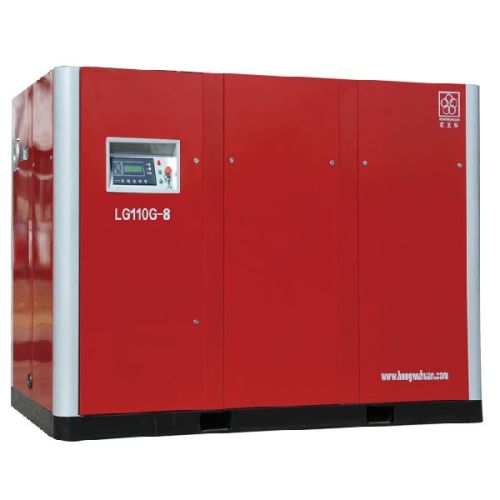

110kw Large Screw Air Compressor For Spray Painting

Hongwuhuan 110kw large screw air compressor for spray painting integrates high efficiency energy saving and absolute reliability into the product design concept. large screw air compressor works closely with the scientific research institute of european and american countries. air displacement of hongwuhuan large screw air compressors differs from 16.6-80m3/min,discharge pressure differs from 0.7mpa-2mpa,voltage is from 380v to 10kv. Lg large series technical parameters                                                                                                                                          model parameters lg90g-8 lg90g-10 lg90g-13 lg110a-8lg110g-8 lg110a-10lg110g-10 lg110a-13lg110g-13 air displacement m³/min 16.6 13.9 11.1 21 16.6 13.5 discharge pressure mpa 0.7/0.8 0.9/1.0 1.2/1.3 0.7/0.8 0.9/1.0 1.2/1.3 compressed stage   single single single single single single motor power kw 90 90 90 110 110 110 motor speed rpm 2975 2975 2975 2975 2975 2975 power supply v/p/hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 start mode   y-△ y-△ y-△ y-△ y-△ y-△ drive mode.
