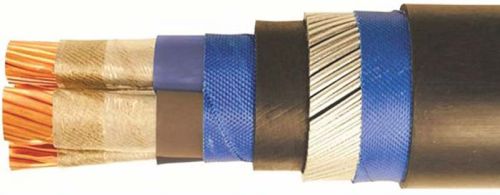

Fire Survival Cables, For Home, Industrial, Voltage : 110V, 220V

Fire Survival Cables are insulated with specially formulated PVC/TPE/XLPE for forming a core. As per the customer’s requirement, we lay cores together or twist to form a pair/triad. They are coated with special Fire Resistant materials and overall sheathed with special PVC/TPE/LSZH. Shielding and armouring will depend on individual requirement.  Armoring comes with an extruded inner special PVC/TPE sheath, and overall sheath of special PVC/TPE.
Standard Specifications

• ICE 331/ BS 6387, IEC 60331
• BS 6387 – CAT A,B,C,W,Z
• BS 7846 – CAT F1, F2, F3

Characteristics

• Withstand Flame temperature of 750ºC up to 3 hours without electrical breakdown at rated voltage.
• Does not produce noxious smoke & fumes which hinder fire fighting and endanger life.
• Does not propagate flame. Special properties: Zero Halogen Low Smoke insulation & sheath material supplied on request
