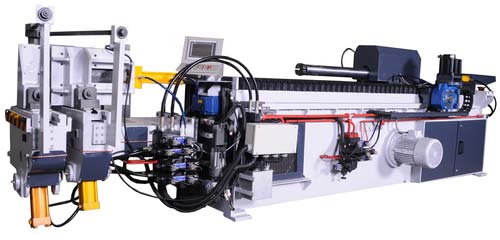

Five Axis Pipe Bending Machine

NHC’ s synchronized bending machines offer the Five axis bending machine with servo controls for accuracy and high speed production. It is most recommended for complex bent with application in across industries. It consist the bending capacity of tube / pipe from 4 outside diameter (OD) up to 80 OD.

Features :

• Color LCD Touch Panel for Data Entry and Editing
• Operation Mode-Manual / Semi Auto / Fully Auto
• Program by XYZ Co-ordinates or by YBC Co-ordinates
• 15 Bends programme (30 Optional)
• Clockwise Bending
• 3D Parts Simulation (optional)
• Large / Multiple programme Data Storage Facility in Flash Disk/Hard Disk
• Bend Arm Over Ride Switch to prevent Bend Arm / Machine Collision
• Programmable Variable Speeds for each Axis
• Multi Sequence Bend Capability for up to 5 Parts with Common Bend Radius and Dia
• Automatic Part Counter
• Built In Hydraulic Oil Cooling system
• Centralized Lubrication system
• Safety Interlocks for Machine operation
• CNC Controller Panel Cooler
• Emergency Stop Switch
• YBC to XYZ Coordinates Conversion
• Parts developed Length Calculator
• Online /Offline Diagnosis Mode
• Roll Bending Capability
• Energy Saving min 30% by using servo pump
