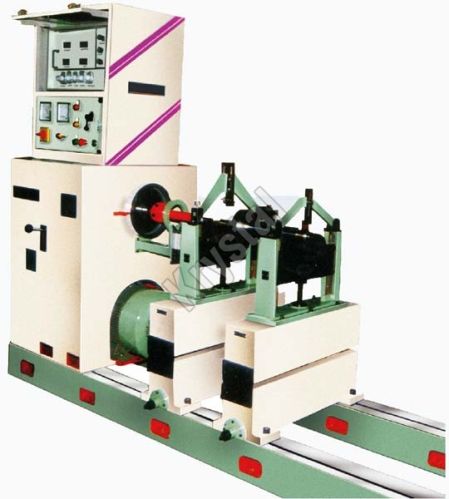

KHB Series Horizontal Axis Balancing Machine

Get Latest Price

Automatic GradeAutomatic
Driven TypeElectric, Hydraulic
Packaging TypeMulti Colour
Power1-3kw, 3-6kw
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Krystal Equipments

Ichalkaranji, Kolhapur, Maharashtra

5.0/5

(1)

View Number

Member Since 22 Years
Nature of Business Retailer
Year of Establishment 1987

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ApplicationChecking Balancing Of Motors
Availability100-200kg, 200-300kg
Packaging TypeMulti Colour
Country of Origin110V, 220V
Automatic GradeAutomatic
Power1-3kw, 3-6kw
Driven TypeElectric, Hydraulic

We are a credible KHB Series Horizontal Axis Balancing Machine Manufacturer, Exporter and Supplier. KRYSTAL fabricates the End Driven Dynamic Balancing Machines of KBH*** and KBH*** (PC) series with latest state of the art technology. All Machines of this series are equipped with analog type control panel. This KHB Series Horizontal Axis Balancing Machine is provided with digital readout for unbalance amount and angle.
Construction
Each model is of rigid and durable construction, reflecting the highest quality of workmanship. All electrical controls and measuring system are separately housed in metal cubicle. All operating controls are conveniently arranged for safety and ease of operation,
Features Of Our KHB Series Horizontal Axis Balancing Machine

Fully Indigenous Design
User friendly with operator safety
Drive options to suit the requirements
State of the art electronic 8 computerized measuring systems
Backed up with decades of experience

Variety Of Options For Measuring Systems Is Available To Suit Variety Of Rotors, For Example

Direct indication of unbalance amount and angle on digital meters.
imbalance resolved into 120^o, 90^o, 60^o etc. (Optional)
PC based measuring system
Any Special requirement to suit various components

Optional mechanical attachments

Vertical and /or Horizontal drilling attachment
Milling attachment
Riveting
Under belt drive
Tangential belt drive
Any other tooling system as per special requirement

Specifications

Models	Unite	KHB - 10	KHB -30	KHB-50	KHB-100	KHB-300	KHB - 650	KHB - 1T	KHB - 2T	KHB - 3T	KHB - 7T	KHB - 10T	KHB - 20T
Weight of Job	kg	0.5 - 10	1 30	2 â50	3 100	10 300	6.5 â�� 650	10 â�� 1000	20-2000	30-3000	70 - 7000	100 - 10000	200 - 20000
Max. diameter of job	mm	500	500	500	1000	1000	1200	1600	1800	2000	2400	2400	3000
maximum distance measured from coupling end to exteme bearing center	mm	500	500	1200	1400	1400	1400	1650	1650	2400	3300	3300	5000
Minimum distance between bearing	mm	50	75	75	90	110	200	350	350	500	560	560	660
Journal diameter	mm	05/01/50	05/01/50	05/01/50	15 -80	20 - 120	20 - 120	25 - 140	30 - 160	35 - 200	55 - 300	55 - 300	70 - 350
Balancing speed of machine	RPM	1200	700	700	600	500	350 - 700	300 - 600	250 - 500	250 - 500	200- 400	200 - 400	180 - 360
Drive motor	HP	0.33	0.75	0.75	1.5	3	5	7.5	10	20	30	40	60
Acceleration capability (GDÂ²nÂ²)	Kgm²n²	0.29 X 10²	0.37 x 10⁶	0.37 x 10⁶	0.88 x 10⁶	3.9 x 10⁶	8.5 x 10⁶	14.12 x 10⁶	44 x 10⁶	88 x 10⁶	168 x 10⁶	216 x 10⁶	400 x 10⁶
Minimum unbalance mass read	gm	0.01	0.1	0.1	0.1	0.2	0.1	0.2	0.2	0.4	1	1	2
Maximum unbalance mass measured	gm.mm	10⁴	3 x 10⁴	5 x 10⁴	10⁵	3 x 10⁵	6.5 x 10⁵	10⁶	2 x 10⁶	3 x 10⁶	7.0 x 10⁶	10⁷	2 x 10⁷
Minimum unbalance measured and microprocessor based models	gm.mm	0.5	1.25	2.5	5	15	5	10	10	20	60	60	160
Minimum achievable unbalance (For maximum weight of rotor)	microns or gm.mm./kg	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5

Note

All balancing supports are designed to take 15% occasional overload
Forjob with Considerable windage effect, Lower speeds in the ratio of 1:2 can be offered at extra price,
All the above machines operate on mains supply of 440, 30 ph, 50 Cycles
Can be supplied with other grid supplies on special request at additional cost
The dimensions given above are approximate
