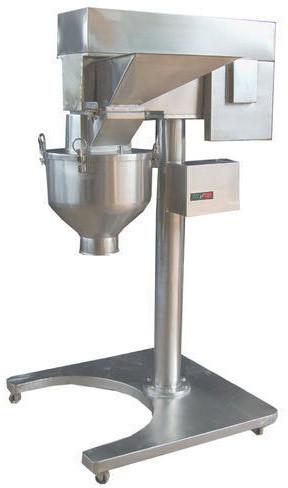

Semi Automatic Multi Mill Machine, Voltage : 110V, 220V, 380V, 440V, Certification : ISO 9001:2008

Listing ID #6523602

Pharma Machinery & Spares Multi Mill are the efficient and compact unit. This equipment is used in the Pharmaceutical industry for compunction i.e. particle size reduction. This is necessary to achieve size reduction as well as an output of uniform size before subsequent operations. The unique feature of Multi Mills is that it can be used inline between two equipment conveniently. For example in the pharmaceutical industry, it is widely used at the outlet of Rapid Mixer Granulator and directly discharge in FBD Bowl for producing by RMG. The uniform granule size results in faster and uniform drying.

Other Details:

• Multispeed drive for various product grinding.
• Easy dismantling and cleaning
• Low energy consumption

SALIENT FEATURES :
• Suitable for Dry Granulation / Pulversing / Shredding & Chopping of Materials.
• Multi Speed Drive for Various Product Grading.
• Easy Dismantling & Cleaning.
• Output 20kg To 400kg / HR Depend upon Machine Model, Characteristic of Product & the Screen Size.
• Easy Maneuverability with the help of Castor Wheels.
• Beaters 8 to 12 nos. with Knife / Impact Edge & 2 Scrapper Blades.
• Rotor Speed - 750 / 1500 / 2100 / 3000 RPM Approx.
MULTI MILL is designed to utilise the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to control the particle reduction. Material fed in to the processing chamber moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in to the container kept below the processing chamber.
