100-200kg Tray Dryer, Voltage : 110V, 220V

Availability100-200kg, 200-300kg
Country of Origin110V, 220V
ApplicationPharamaceutical
Automatic GradeFully Automatic
Power(W)1-5kw, 10-15kw
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Availability100-200kg, 200-300kg
Country of Origin110V, 220V
Automatic GradeFully Automatic
Power(W)1-5kw, 10-15kw
ApplicationPharamaceutical

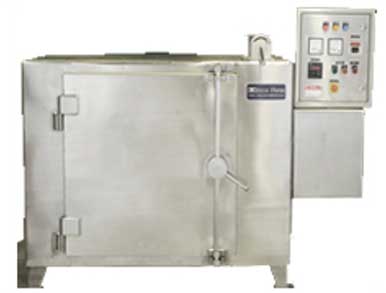

The Tray Dryer offered by us is used for diverse drying applications like food, electrodes, bakery, plastic & powders and drying of pigments. The Vacuum Tray Dryer is used in the industries like Pharmacy where drying and heating are the essential parts of the manufacturing process. Thermostatic inner chamber of the dryer is fabricated using mild steel and stainless steel, which helps us maintain our position as the apex Pharmaceutical Tray Dryer Manufacturer in Thane, India.

Features

All contact parts made of SS 316 as PGMP standard
Available in wide range models from 6 to 192 raise capacity
Design for uniform circulation of hot air in the drying chamber
Heating cold and fan motor having electrical inter locking for safety of heating elements
Electric/Steam/Thermic Fluid heating system
Fresh air inlet and outlet air flow can be adjusted with damper control valve

Optional Accessories

Flameproof construction
0.3 micron heap filtration unit

Documentation

Documentation like DQ, IQ, OQ and FAT provided with the machine.

Technical Specifications

Model	External Lx D x H (mm) (approx)	Temp. Range (degree centigrade)	Heating load (Kw)	Fan Motor (HP)
12 EP	1600x 700x1400	100, 200, 300	6, 9, 12	0.5
24 EP	2000 x1100 x 2150	100, 200, 300	6 ,9 ,12	0.5
48 EP	2300 x 1150 x 2150	100, 200, 300	9 ,15, 18	1.0
96 EP	3500 x 1150 x 21	100, 200, 300	18, 21, 27	1.0 (2 nos.)
