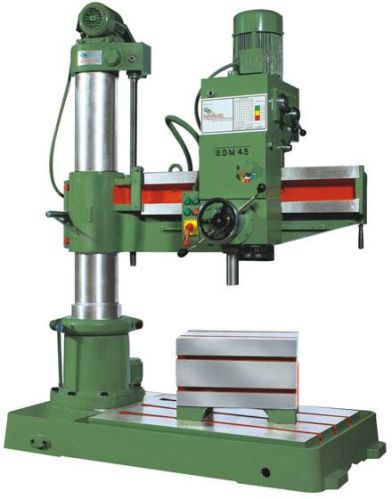

All Geared Radial Drilling Machine (SDM-45)

All Geared Radial Drilling Machine (SDM-45), Certification : CE Certified, Voltage : 110V

Listing ID #1277773

Get Latest Price
  • CertificationCE Certified
  • Weight100-1000kg
  • Voltage110V
  • Rated Power3-5kw
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry
Siddhapura Engineering Works verified-icon
Vithalwadi, Bhavnagar, Gujarat
View Number
  • Member Since 12 Years
  • Nature of Business Retailer
  • Year of Establishment 1979

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Certification CE Certified
  • Weight 100-1000kg
  • Voltage 110V
  • Rated Power 3-5kw
  • Automatic Grade Automatic
  • Warrenty 1 Year
  • Item Code SDM-45

Designed using the latest technology, our All Geared Radial Drilling Machine (SDM-45) comes with precision anti friction bearing for all rotating members. We are a renowned Manufacturer, Supplier and Exporter of Radial Drilling Machines.  Our Radial Drilling Machines have automatic adjustable depth control. One can obtain the Machines at competitive rates.
Some Important Features :

  • Specially designed heavy duty hardens & grounded drilling head.
  • Precision anti friction bearing for all rotating members.
  • Auto as well as manual feeds.
  • Speed range to suit various operations.
  • Automatic Adjustable Depth Control.
  • Electrical safety protection against accidental over feed.
  • Ergonomically grounded control for easy of operations.
  • Adjustable terry type machine lamp.
  • Coolant Pump with built in coolant tank in base plate only.
  • Complete with all electrical ready to instant use.
  • Minimum maintenance requirement.
  • Base : Heavy Duty Cast Iron with maximum working space, provided with standard T-Slot, leveling and foundation bolt holes and built in coolant tank.
  • Spindle : Forged alloy steel spindle finish ground to close tolerances and mounted on heavy duty anti friction bearing to withstand heavy radial as well as thrust loads.
  • Gear : Heavy Duty, Precision machined from forged with grinding nrc205 gear material and suitably heat treated for maximum wear.
  • Controls : Conveniently grouped for ease of operation and maximum efficiency.
  • Finish : Machine are finished with long lasting wear resistant paint. All bright components are suitably treated for protection against oxidization.
  • Quill : Ground finished to very closing limits from specially alloy steel for precision pin-point drilling operations.
  • Electrical : Built in quality electrical are easily accessible for operation and maintenance.
  • Lubrication : In Main Head Oil System Are Automatically provided by oil pump.
  • Standard Accessories :
    • Complete Electrical, Drill Drift Key,
    • Oil Can, Level Pad, Leveling Bolt
  • Optional accessories : Box Table, Coolant Pump, and Drill Vice, Machine Lamp.


Specifications

DESCRIPTION

CAPACITY & SIZE

Drilling Capacity In MS

45mm

Drilling Capacity In CI

50mm

Tapping In MS

25mm

Rough Boring In MS

85mm

Spindle Nose Tapper

MT-4

Spindle Travel

200mm

Number Of Spindle Speed

8

Range Of Spindle Speed

60 TO 1300 RPM

Number Of Power Feed

3

Range Of Power Feed

0.10,0.20.0.30mm

Drilling Radius Max./Min

1115-550mm

Distance From Column To Spindle Max./ Min.

1020-400mm

Diameter Of Coulmn

210mm

Vertical Power Movement Of Arm

750mm

Horizontal Movement Of Drilling Head

630mm

Box Table LXWXH

510 X 380 X 355

Base Plate Area

1625 X 850 X 190

Working Surface

1020 X 650

Number & Size Of T-Slot

3/16mm

Drilling Motor (TWO SPEED)

3 HP, 50 Cycle, 750 RPM

3 HP, 50 Cycle, 1500 RPM

Elevation Motor For ARM

1 HP, 50 Cycle, 1440 RPM

Shipping Size Approx L X W X H

1750 X 1000 X 2000
