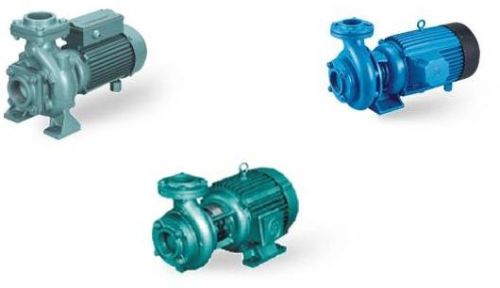

Contact SupplierC.R.I. Centrifugal monoblock pumpsets volute chamber and impellers are designed to give the best possible hydraulic efficiency and good suctio lift characteristics. Most modern and highly sophisticated machinery and technology are engaged in manufacturing these pumpsets, using quality raw materials, dynamically balanced impellers and rotors to ensure long life. These pumpsets are powered by a totally enclosed fan cooled AC Induction two pole motor or four pole motor, suitable for continuous duty. Motor stator is made with low watt loss Silicon steel laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enamelled copper wire and are varnish impregnated. Construction of motor frames and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor. These pumpsets require adequate motor protection control panel.
Applications :
Salient Features :
Pumped Liquids : Clean, thin, non-aggressive, non explosive, clear, cold, fresh water without, abrasives, solid particles or fiber having the following characteristics.
Power Range | 2.2 kW -15 kW (3HP-20 HP ) CH Series 2.2 kW & 3.7kW (3HP & 5 HP) – DM Series 1.5 kW - 9.3 kW ( 2HP – 12.5 HP) –CS Series |
Speed | CH & DM Series -2880 RPM, CS Series -1440 RPM |
Versions | Three Phase, 380 -415V, 50Hz,A.C. Supply |
Degree of protection | IP 44 |
Class of Insulation | A, E,& B |
Direction of rotation | Clockwise viewed from Driving end |
Type of Duty | S1 (Continuous) |
Part Name | CH Series | CS Series | DM Series |
---|---|---|---|
Pump Casing | Cast Iron | Cast Iron | Cast Iron |
Motor Frame | Cast Iron | Cast Iron | Cast Iron |
Impeller | Cast Iron / Bronze | Cast Iron | Cast Iron |
Shaft | Mild Steel | Mild Steel | Mild Steel |
Sealing | Gland Rope | Gland Rope | Gland Rope |
Permissible Amount of sand | 25 gm/m3 (max.) |
---|---|
Allowable solids | 3000 ppm (max.) |
Chloride ion density | 500 ppm (max.) |
Turbidity | 50 ppm silica scale (max.) |
Hardness (drinking water) | 300 (max.) |
Maximum liquid temperature | 33 oC |
Maximum ambient temperature | 40 oC |
Specific Gravity | 1.004 (max.) |
Viscosity | 1.75 x 106 m2/sec. |
Ph | 6.5 to 8.5 |
