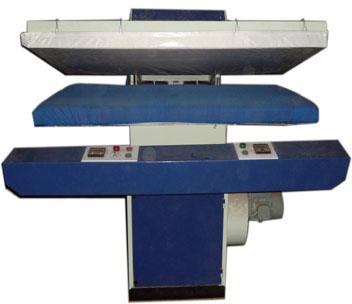

We bring forth highly advanced Flatbed Press for the clients. Manufactured from high-grade components, our Flatbed Press is known for its reliable performance and high durability. Our Flatbed Press is ideal for uniform, hosiery cloths, table linens, bed sheets, towels and pillow covers, etc. We check the Flatbed Press on different parameters like performance, durability, maintenance etc. The Flatbed Press can be availed at pocket friendly prices from us.
Specialties
Model | Head and bed Size | Air Connection ConsumptionT | Heating | Overall Dimensions W x D x H App | Net.Wt/Shipping Wt.Shipping Size W x D x H App. Shipping Vol. | ||
---|---|---|---|---|---|---|---|
he Fluid Connection Consumption | Steam Connection Consumption | Electric Load | |||||
LEW/ FBP/75 | 1500 x 750 | 0.5 BSP 100 Lts/Min 6Kg/Cm | 0.5" 0.5" BSP 16,000 Kcal/Hr. | 0.5" BSP 30 Kg/Hr. | 18 Kw | 1600 x 1600 x 1300 | 600 kg / 800 kg 1900 x 1900 x 1600 5.77 m |
LEW/ FBP/110 | 2300 x 1100 | 0.5 BSP 200 Lts/Min 6 Kg/Cm | 0.5" 0.5" BSP 32,000 Kcal/Hr. | 0.5" BSP 60 Kg/Hr. | 36 Kw | 245 x 1950 x 1300 | 150 kg / 1500 kg 2750 x 2250 x 1600 9.90 m |
Note : All dimensions are in mm standard Machine Operate on 415±10%3 phase,50Hz AC Electric supply, Specifications Design mentioned above are to Subeject to Change without notice:- Machines are also made of order or per customer Equipment Specification.
