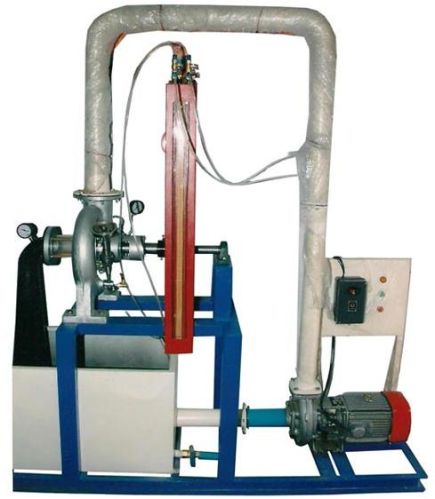

Automatic Francis Turbine Test Setup, For Industrial Use, Voltage : 110V

Power1-3kw
Automation GradeAutomatic
ApplicationIndustrial Use
Availability100-400kg
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Availability100-400kg
Country of Origin110V
ApplicationIndustrial Use
Power1-3kw
Automation GradeAutomatic
Electricity15 kW, 440V Ac, Three Phase
Utilities RequiredWater Supply and Drain.

The company is enlisted among the topmost Manufacturers, Exporters and Suppliers of Francis Turbine Test Setup in India. Our Turbine Test Setup is manufactured using the latest technology and quality approved tools to ensure excellent performance. We make available Turbine Test Setup with different technical specifications to meet the diverse demands of buyers. Our Test Setup is supported by thick cast iron pedestal in order to provide high efficiency.

Features :

To study the operation of a Francis Turbine
To determine the Output Power of Francis Turbine
To determine the Turbine Efficiency

Specifications

MODEL	HM 101 (1.33 HP)	HM 101 (2 HP)	HM 101 (5 HP)
Output Power	1.33 HP / 1 Kw	2 HP / 1 Kw	5 HP / 3.75 Kw
Discharge	1000 LPM (Approx.)	1000 LPM (Approx.)	2000 LPM (Approx.)
Supply Head	10 m	10 m	15 m
Rope Brake Dynamometer	Dia 200 mm	Dia 200 mm	Dia 300 mm
Sump Tank	Capacity 300 Ltrs.	Capacity 300 Ltrs.	Capacity 600 Ltrs.
Water Circulation Centrifugal Pump	Capacity 5 HP, Three Phase	Capacity 5 HP, Three Phase	Capacity 15 HP, Three Phase
Speed	1500 RPM (approx.)
Runner	Having Curved Vanes
Discharge Measurement	Pitot Tube with Manometer
Control Panel	Star/Delta Starter, Mains Indicator, MCB for overload protection
The whole set-up is well designed and arranged in a good quality painted structure.
