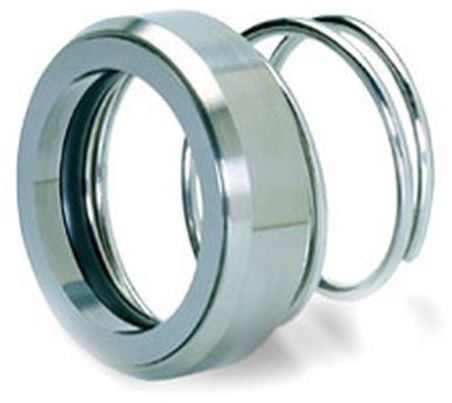

-20 To 180&DEG;C Type 1115 Conical Spring Mechanical Seal

MOQ2 Piece
Temperature Range-20 To 180°C
Shaft Diameter10-100mm
Pressure10 bar (max)
Seal FaceCarbon, Ceramic, SiC, Tung. Carbide
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Temperature Range-20 To 180°C
Shaft Diameter10-100mm
Seal FaceCarbon, Ceramic, SiC, Tung. Carbide
Pressure10 bar (max)
Metal PartsSS304,SS316
Velocity Range10 m/sec
O-ring MaterialsElastomers,TTV

mechanical seal designed with an O-ring for reliable secondary sealing. This seal uses a single coil spring to transmit torque, which means its installation depends on the shaft’s direction of rotation as viewed from the drive end.

For easy selection, right-handed springs are used on shafts rotating clockwise, while left-handed springs suit shafts rotating anticlockwise. The Type 1115 can be fitted with a range of seal face combinations to meet diverse operating conditions.

Engineered for dependable performance, these seals are widely used in submersible pumps, sewage pumps, chemical transfer systems, water pumps, and other demanding applications

SEAL CHARACTERISTICS :-
