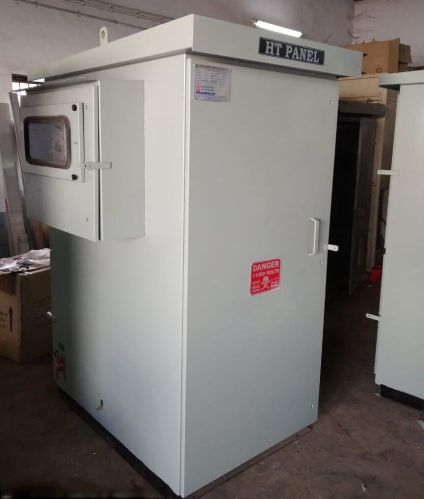

Resin Cast 11kv Ht Metering With Lbs Panels

The Current and Potential Transformers used in these panels are Accuracy tested at KPTCL / National Accredited testing laboratory. Load Break Switch 630A, 26.3KA, triple pole, spring assisted hand operated type with quick break contacts. With earth - switch and interlock, as per IS-9920, IEC265. HT HRC fuses of suitable rating (Access to the HT Fuse chamber is possible only after switching OFF the LBS) The Instrumental Current Transformer (Resin cast) CL:0.5 Confirms to IS:2705. The Insulation Level is 15/35/95kV The Potential Transformer (Resin cast) CL:0.5 Confirms to IS:3156. The Insulation Level is 15/35/95kV The Electronic Trivector Meter CL: 0.5 Test Terminal Block 3Ph. 3 Wire Front Connection Sealing Facility Provided as per EB norms Since mos these panels are installed outdoor, these are developed to be sturdy and resistant to varying ranges of temperature, which confirms to IP55 asper IS/IEC 60947-1-2004.
