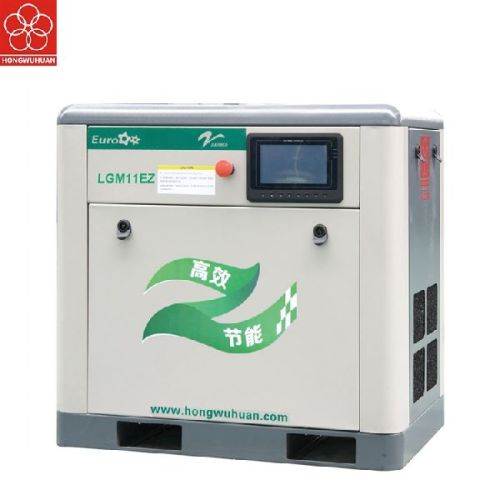

11kw Permanent Magnetic Frequency Air Compressor For Stone

Hongwuhuan 11kw permanent magnetic frequency air compressor for stone can maintain high output efficiency at low rotate speed. The greater the fluctuation of air volume of hongwuhuan permanent magnetic air compressor for stone in the system, the more obvious energy saving effect is. Hongwuhuan air compressor for stone adopt permanent magnet motor with huge energy saving efficiency and superior performance.  lgmez series technical parameters                                                                                                                                                 model parameters lgm7ez lgm11ez lgm15ez lgm22ez lgm37ez lgm55ez air displacement m³/min 1.15 1.65 2.3 3.6 6.1 10.2 discharge pressure mpa 0.8 compressed stage single motor power kw 7.5 11 15 22 37 55 motor rotate speed rpm 2950 power supply v/p/hz 380/3/50 start mode soft start drive mode direct drive air outlet size g3/4" g3/4" g1' g1" g1-1/2" g2" cooling method air cooling length mm 835 1020 1020 1250 1400 1600 width mm 535 640 640 770 880 970 height mm 800 865.
