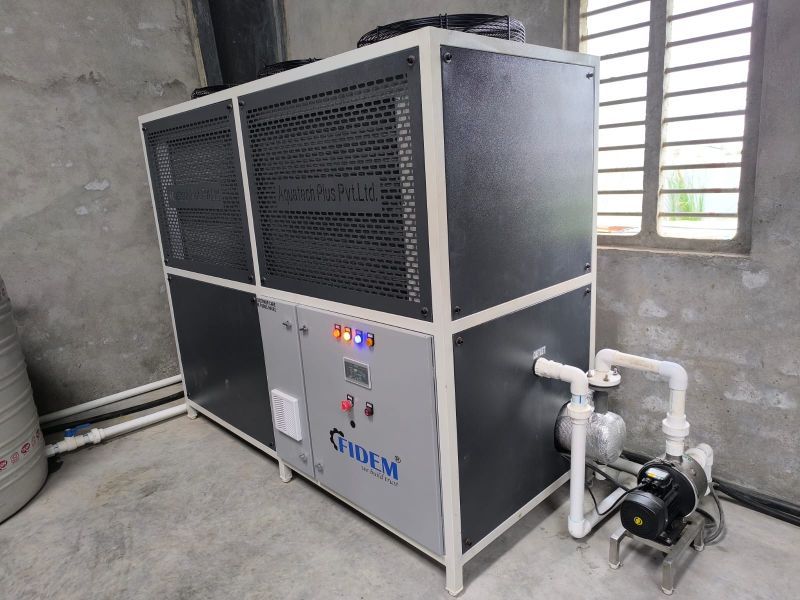

Metel 12 TR Air Cooled Chiller, Color : Multi

Parameter

Specification

Model

FMACA 12

Nominal Cooling Capacity

43 kW (12.6 TR)

At Air outlet temperature

15 °C

Design Air Flow Rate

3000 m³/hr

Ambient Temperature

40°C

Control Range

+5 to +20 °C

Cooling Circuit

1 No.

Cooling Agent

R22

No. of Compressor

2 Nos.

No. of Gas Circuit

2 No.

No. of Fan / Fan Power

2 Nos. / 2.63 kW each

Compressor Power

6.32 kW × 2

Maximum Air Flow Rate

3000 m³/hr

Minimum Air Flow Rate

1200 m³/hr

Pressure Drop of Air Through Evaporator

150 Pa

Air Connection IN / OUT

200 mm

Air Temperature IN / OUT

40°C / 15°C

Relative Humidity

—

Electrical Power Supply

415V, 50 Hz, 3 phase

Control Voltage

24V DC

Condenser And Evaporator MOC

Copper And Aluminum

Copper tube

Silver Coted

Fines

Anticorrosion Coting

Total Connected Load

15.27 kW

Main Dimensions (W × D × H)

2350 × 2550 × 2350 mm

Weight

1300 kg

Color

Gray and Off White

Air Cooled Air Chiller Require Fresh Air Suction on Condenser side and hot exhaust on top of the chiller
