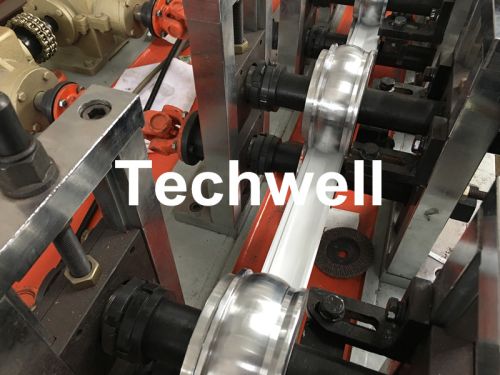

120mm TW-RSD85 Hydraulic Cutting Roller Diameter Rolling Door Slat Forming Machine

Forming Speed5-15m/min
Roller Diameter120mm
Control SystemPLC Control
Roller Groups13 Sets Main Roller
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

120mm roller diameter rolling door slat forming machine with hydraulic cutting tw-rsd85 main specifications sheet material: aluminum sheet thickness: 0.2-0.35mm covered width: 39mm 42mm 45mm 55mm....

View More Details

Send Enquiry

Company Information

Wuxi Techwell Machinery Company limited

Wuxi

View Number

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

120mm roller diameter rolling door slat forming machine with hydraulic cutting tw-rsd85
main specifications
sheet material: aluminum
sheet thickness: 0.2-0.35mm
covered width: 39mm 42mm 45mm 55mm 65mm 77mm
decoiler: manual decoiler
capacity of decoiler: 2 ton
forming speed: 0-15mmin
drive type: gearbox drive
forming station: approx. 37 stations
shaft diameter: 40mm or 50mm
shaft material: high grade 45# steel with heat treatment
main power: 7.5kw
punching: pneumatic type punching
cutting type: servo tracking flying-saw cutting
cutting power: 2.2kw
servo motor power: 1.5kw
pu foaming machine: with two group " iso poly "
main machine dimension: approx. 24m * 1.2m * 1.2m ( l * w * h )
