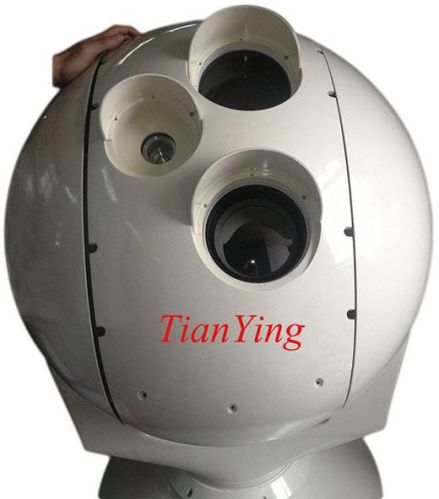

12km/20km Electro Optical Infrared Thermal Imaging Surveillance System

China TianYing EOST-750M electro-optics system deliver for coaxial alignment target, stable tracking surveillance, accurate measuring target moving data and recognition human beyond 8km.EOST-750M thermal camera system offer precise information and clear view, which is why TianYing Optical seeks to offer the most reliable surveillance solution. It is a fully stabilized, compactly designed surveillance system which bundles various state-of-the-art sensors. Thus, offering the user a large variety of functions comprised in only one device.The EOST-750M thermal camera system is installed in platforms on land vehicles, ships or tower. it is available as a stand-alone unit or can be fully integrated into CMS systems.EOST-750M Long Range Tracking Viewing EO/IR Thermal Camera System Features: 1. Day and night reconnaissance, detection, identification and stable tracking of sea and land targets.2. Maximum threat recognition solution with the lowest cost of ownership.3. Highly reliable system capable of operating in harshest environments.4. Ruggedized two axis stabilizing gimbal system capable of wind-proof grade 12.5. Long range cooled thermal imager detect vehicle beyond 20km, detect boat beyond 20km, detect helicopter beyond 30km, detect fighter beyond 30kmEOST750M tracking viewing thermal camera system recommended use:  1) Maritime Patrol.All weather surveillance, day/night long stand-off range detection, identification and tracking of naval target, land target and some air target.2) Search and RescueAll weather, day/night detection of naval units in distress and/or men at sea.3) Coast Guard/Border Suveillance/Police Operations.All weather, day/night detection, identification and tracking of illegal activities (immigration, smuggling, poaching, etc...).4) Sentinel duties.All weather, day/night support to independently perform surveillance, reconnaissance, target detection and track task.EOST-750M Tracking Viewing EO/IR Thermal Camera System Specifications:
Model
EOST-750M
THERMAL CAMERA
Detector
Cooled FPA
Pixel
 640x512
Spectral band
3μm~5μm
Pixel
15mm x 15mm
Focal length
30/150/750mm F4
DAY LIGHT CAMERA
Detector
 1/1.8" CMOS
Focal length
64x optical continuous zoom lens
Resolution
1920×1080
LASER RANGE FINDER - Option 1
Wavelength
1.57μm
Ranging
> 15km for 30% reflection 5m² target in standard visibility 23.5km
Measuring rate
1Hz continuous 10minutes
Measurement accuracy
≤ 2m (RMS)
Safety class
Class 1(EN 60825-1:2007)
LASER RANGE FINDER - Option 2
Wavelength
1.57μm
Ranging
> 18km for 30% reflection 5m² target in standard visibility 23.5km
Measuring rate
1Hz continuous, 2Hz burst for 25secs.(1Hz typical 50 secs to 3 mins).
Measurement accuracy
≤ +/-1m
Safety class
Class 1M(EN 60825-1:2007)
SERVO
Stabilization accuracy
typical 1.3mrad(1σ), option 0.2mrad.
Turret direction range
azimuth:360° continuous; elevation:+45°~-45°
TURRET MAXIMUM ANGLE SPEED
Azimuth
≥20°/s
Pitch
≥20°/s
ENVIRONMENTAL
Operating temperature range
-40ºC ~ +60ºC
Storage temperature range
-50ºC ~ +70ºC
Protection level
IP66, wind-proof grde 12
POWER
Power Supply
DC 24V
PHYSICAL
Sweeping radius
≤ 750mm
Hight
≤ 1360mm
Weight
≤ 200kg (exclude installation base)
Note
1, Technical information is subject to change without notice. 2, Depending on the region of sale.
