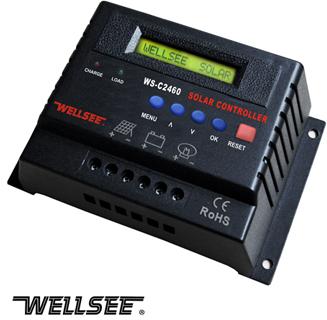

Contact SupplierWe are offering 12v/24v 60a solar charge controller ws-c2460.
Functions:
overloa protection
short circuit protection
converse discharge protection
reverse polarity connection protection
thunder protection
low voltage protection
overcharge protection
batteries stop and charge voltage hvd sets up
charge and low voltage lcd sets up
display the capability of the battery soc
loads and comeback setups.
Intellectualized temperature compensation
record and calculate the charged ah and display it on the lcd screen.
Record and calculate the discharged ah and display it on the lcd screen.
Cpu control and lcd-display
technical index:
model:ws-c2460
rated voltage:12v/24v automatic voltage recognition
max load current:60a
input voltage:12v~17v/24v~34v
length≤1m,charge loop drop:<0.25v
length≤1m,discharge loop drop:<0.15v
over voltage protection:17v/34v
full charge cut:13.7v
low voltage cut:10.5v~11v / 21v~22v
temperature compensation:-3mv/℃/cell
no load loss:≤30ma
max wire area:6 mm2
ambient temperature:-25℃——+55℃
