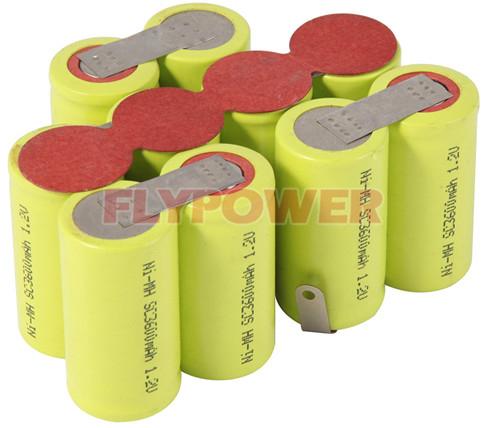

12V Sc3600mAh Ni-MH High Power Rechargeable Battery Pack For Vacuum Cl

1. Model: 12V Sc3600mAh Ni-MH high power rechargeable battery pack for vacuum cleaner(10S of FH-Sc3600P).
2. UN, RoHS, CE approved Ni-MH Battery pack.
3. Ni-MH Battery pack OEM orders are welcomed.
4. Ni-MH Battery pack is widely used to consumer portable equipments, Information Devices, Miner lamps, Power tools, Remote Control Toys, Medical Devices, vacuum cleaner, cordless phone, etc.
5. Bulk pack, blister card are available.
6. For Ni-MH High Power series Sc size, other capacity are availabe from 2500mAh to 4800mAh.
7. Customizes shapes, capacity, and voltage are accepted.
8. Individual cells can be assembled in parallel or series into stacks as required by customers.
9. No memory effect, High voltage, high energy density, long cycle life.
10. Eco-friendly.
Cell: Ni-MH
Model: 10S of FH-Sc3600P
Nominal Voltage: 12V
Nominal Capacity: 3600mAh
Minimal Capacity: 3500mAh
Charge Current: Standard charge : 0.1C(360mA)
Rapid charge : 0.5C(1800mA)
Charging Time: Standard charge : 16.0 hours (Ref.)
Rapid charge : 2.4 hours (Ref.)
Continuous Discharge Current: 10C (36A), Discharge Average Voltage:1.14V per sigle cell
Cut-off Discharge Voltage: 8.0V
Dimensions(H*W*L): Approx. 24mm *72mm*96mm
Weight: Approx. 640g
Operating Temperature: Charge : 0 ~ 45 ºC
Discharge: -10 ~ 60 ºC
Storage Temperature: at -5 ~ 35 ºC Recommend(25±5 ºC)
Control required 1) -ΔV: 0 ~ 5mV 2) d T d t: 0.8 ºC min 3) T co: 40 ~ 45 ºC
Note Storage capacity should be 40%~50% full charge capacity.
