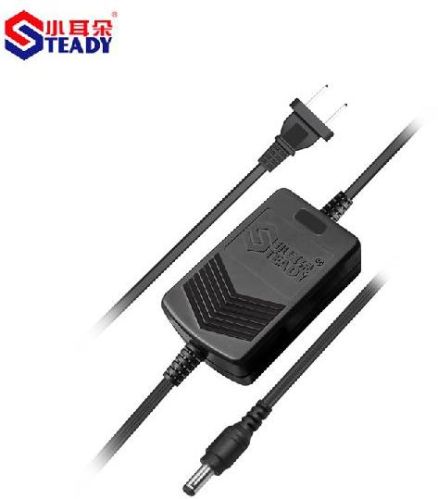

12VDC 2A 24W Power Supply

This switching power supply isan economical product by our company. The Model No. is STD-K2L-J, it is similar with STD-K2L, but more economical and practical. It is output voltage 12VDC and current 2A with power 24W. Full 2A transformer, big capacitance and wide voltage input.   Features: Wide inputrange: 100-240V, 50/60Hz. CustomizedAC plug, EU,UK,USA,AU Plug is available Our special design: adopts No hole design, plastic housing use ultrasonic process, it is No need any screw. Protections:short circuit, over current, overload,over voltage. 4 timesaging test 3 yearswarranty Technical parameter Performance MODEL STD-K2L STD-K2L-J  Output Voltage 12VDC 12VDC  Output Voltage Tolerance ±1% ±1% Output Current 2.0A 2.0A Output Current Range 0~2.0A 0~2.0A Ripple and Noise 120mVp-p 120mVp-p Into line Stability ±0.50% ±0.50% Load Stability ±1% ±1% Output Power 24W 24W Efficiency 85% 85%  lnput Voltage Range 110-240VAC 110-240VAC Mechanical Shock 10-500HZ, 2G 10min./1Period,Time 60min  Insulation Strength I&O:1.5KVAC   Surging Current cold18A/110V 36A/240A Overload Protection 105%~200%  T.C. 0.03%/℃(0~50℃) Start ,Rise ,Hold Time 200ms,100ms,20ms isolation resistance I&O,I&C,O&C:500VDC  Working Temperature -10℃~ 40℃,20%~90%RH Safe Temperature -20℃~ 85℃,10%~95%RH safety standard
