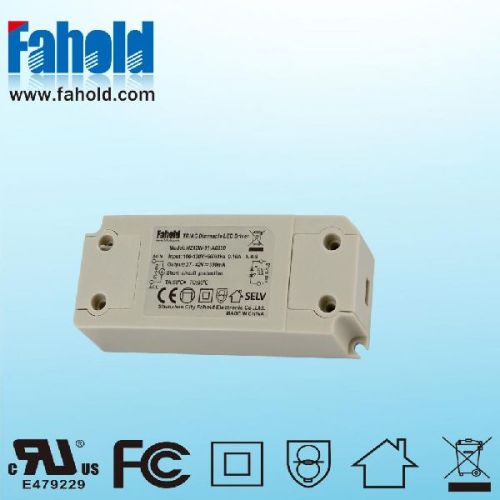

12W Triac Dimming Constant Current LED Driver

12W Triac Dimming Constant Current Led Driver Details   HZ12W-01 Series, Plastic housing Triac dimming Driver, with wattage range of 6W to 12W , UL,FCC,CE Certificate. 100-130VAC Input, Single Stage LED Driver with Active Power Factor Correction (>0.9). The units are suitable for 12W downlights led driver. This driver detects the power and voltage needs of the attached LED panel and drives it accordingly. It is designed for the current range of traditional LEDs and makes life much easier for customers as one driver fits many different LED Lights Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet UL8750,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547. Features & Benefits · High PFC · Lightweight    UL Listed · Single channel output, output current level selectable by DIP S.W. · Wide range of input voltage 100VAC ~ 130VAC · High efficiency up to 85% · Built-in active PFC function · 100% output  dimming signal input, can be used as normal power supply · Protections: Short circuit,over load, over voltage & over temperature protections · Suitable for indoor LED lighting application Product Specs: Output voltage:27-42V Max. Output wattage: 12W Max. Output Current: 300mA Dimensions:94x38x24 mm Efficiency:85% EncironmentIP Rating
