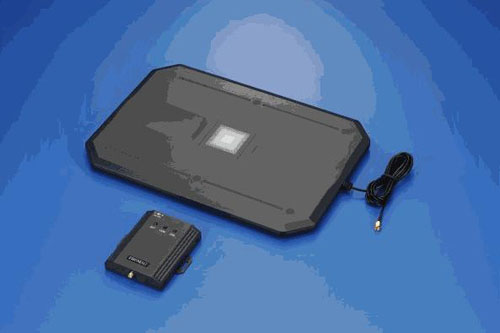

Contact SupplierWe are offering 13.56 mhz rfid reader/writer with antenna.
overview :
the high frequency rfid reader/writer is an advanced reader writer that can read multiple tags from a distance of up to 30 cm under ideal conditions. The small form factor of this unit provides for easy installation and is a suitable hardware solution that can be integrated into pos systems where multiple tag reads for long lines are required. Jewelers tags, laundry management, document tracking, books and video rentals, etc.
application usage :
-smart checkout multi tag solution
specifications :
-display: 3 status led's
-power requirements: 12 v dc, 300 ma.
-communications interface: rs232
-baud rate: 19,200 bps n, 8, 1
-frequency: 13.56 mhz.
-power: 1000mw
-read write distance: 30 cm. With iso 15693 compliant transponders
-technical certificates: ce, fcc ce, fcc
-dimensions: l 345 mm x w 240 mm x h 20 mm
-housing: abs
operating specifications :
-waterproof and dustproof - ip40
-operating temperature: -0 °c to 60 °c
-storage temperature: -20 °c to 70 °c
-humidity: 10 to 90 % relative
others :
-multi-detection: yes
-antenna compatibility:
-ant1015a for wall or desktop mounting
-antenna connection: rp-sma 50 ohm
-transponder compatibility: tag-it@hf, iso 15693 compliant transponders
