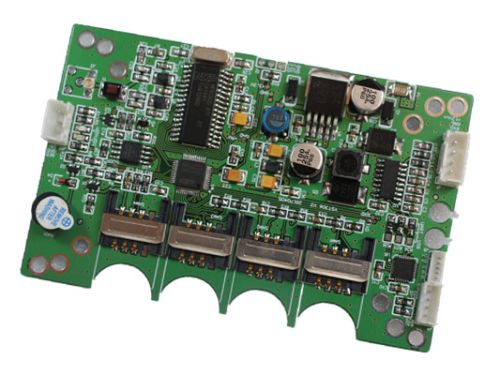

YST306GS series are RFID readerwriter module which pick or send command by RS232 ports. YST306GS series meet kinds of international contactless IC card standards. Also YST306GS series can support kinds of cards from suppliers. YST306GS series RF antenna is separated from the module. The RFID module can be very good at readingwriting and very stable for impedance analyzer adjusting between RF circuit and antenna. YST306GS series RF antenna is separated from the module. The module is connected to the antenna by the 50Ω cable. It is with flexible antenna size and layout. There is a LED lamp holder, can output LED lamp state.
Qualifications
Where it can be used: bus, access control system, bank, water meter, etc.
PCD: NXP RC400
Working frequency: 13.56MHz
RF standard: ISO15693, ISO7816
SAM card slot:4
Cable to antenna: 60cm, can be custom-made, 0.1-1.5mm
Operating distance: 80mm(depending on card and antenna design)
Cable to antenna: 60cm, can be custom-made, 0.1-1.5mm
Anti collision ability: Full functions anti collision; be able to process multi-card simultaneously; be able to set operate single card only.
Auto detecting card: yes, default OFF
EEPROM: 4K
Interface: RS232
Max command length: 1024 Bytes
Interface level: 3.3V
Power consumption: 50mA
Dimension: 105mm*67mm *8.5mm
Package: DIP32
Weight about:100g
