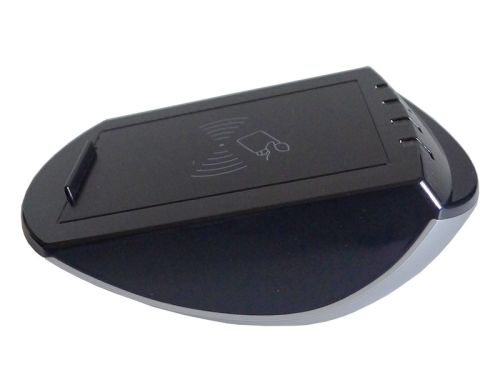

    Plastic 13.56MHz RFID Desktop Reader-MR7911

    • MOQ1 Piece(s)
    • MaterialPlastic
    • Brand NameMR7911
    • ApplicationMR7911
    • Number Of FlowerMR7911
    • Supply TypeManufacturer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 7 Years
    • building Nature of Business Manufacturer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    • Number Of FlowerMR7911
    • Brand NameMR7911
    • MaterialPlastic
    • ApplicationMR7911
    • InstallationJINMUYU
    • BatteryNO
    • MOQ1PCS
    • NameMR7911

    mr7911 is the standard usb pc/sc interface with 4 sam slots fully termsing sam according to iso7816, and also compatible with many pc/sc readers in the market. It has high speed mcu and advantage firmware providing very high card process speed. Its' rf interface and protocol process with emv2010 level 1 certification ability.
    it is based on nxp series rf chip with high performance. The communication is according to usb pc/sc standard. The reader fully supports the ic card according to iso14443, especially completely supports iso14443-4 contactless cpu card.
    • main characteristics
    • • true usb pc/sc interface, compatible with many pc/sc readers in the market
    • • high speed mcu and advantage firmware provide very high card process speed
    • • rf interface and protocol process with emv2010 level 1 certification ability
    • technical parameters
    • • pcd: nxp mf rc531
    • • working frequency: 13.56mhz
    • • rf protocol: iso14443a, iso14443b
    • • operating distance: 100mm (mifare one, typical)
    • • sam slots: 4 slots, terms iso7816 (t=0 & t=1, terms pps, max. 115200bps)
    • • display: 4 leds, blue, yellow, green, red
    • • buzzer: build in
    • • interface: usb pc/sc standard
    • • power supply: dc5v ± 10%
    • • power consumption: 0.9w
    • • dimension: 135mm * 100mm * 45mm
    • • weight: about 100g
    • • operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
    • • storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f)
    • • demo software: pcsc communication tool
    • • sdk: base on windows, free
    • • sample code: vc, vb, c++ builder, delphi, power builder
    • • isp: terms
    • • rohs: by order


    Additional Information

    • Payment Terms L/C, D/A, D/P, T/T, Western Union,
    • Port of DispatchChina
    • Packaging Detailscarton boxes
    • Delivery TimeWithin 3 days after get the payment
