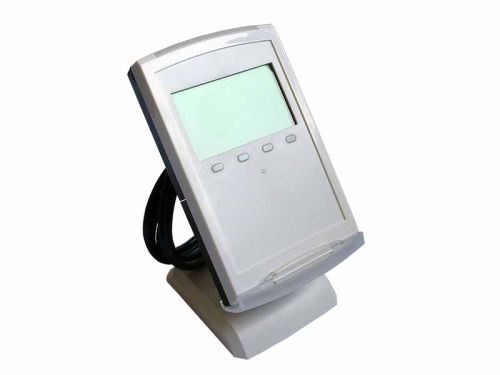

    13.56MHz RFID Desktop Reader-MR801, Packaging Type : white
    • 13.56MHz RFID Desktop Reader-MR801
    • 816618
    • 816619
    • 816620

    13.56MHz RFID Desktop Reader-MR801, Packaging Type : white

    Get Latest Price
    • MOQ1 Piece(s)
    • Frequency13.56MHZ
    • Number Of FlowerMR801
    • Total Carbohydrate1years
    • Products StatusMR801
    • Supply TypeManufacturer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    jinmuyu electronics co LTD
    location BEIJING
    View Number
    • calendar Member Since 7 Years
    • building Nature of Business Manufacturer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    • Number Of FlowerMR801
    • Frequency13.56MHZ
    • Total Carbohydrate1years
    • Brand NameMR801
    • Protocol13120161037
    • NameMR801
    • Products StatusMR801
    • Resolution13.56MHZ

    MR801 series desktop contactless IC card reader is based on NXP series RF chip with high performance ARM7 MCU. The communication is according to USB PC/SC standard. The reader fully supports the IC card according to ISO14443 standard, especially completely supports ISO14443-4 contactless CPU card.
    The reader builds in 2 SAM slots, and fully supports SAM according to ISO7816.
    • Main Characteristics
    • • 128 * 64 pixel LCD displayer
    • • True USB PC/SC interface, compatible with many PC/SC readers in the market
    • • High speed MCU and advantage firmware provide very high card process speed
    • • RF protocol process with EMV2010 LEVEL 1 certification ability
    • Technical parameters
    • • PCD: NXP MF RC531
    • • Working frequency: 13.56MHz
    • • RF standard: ISO14443A, ISO14443B
    • • Operating distance: 100mm (MIFARE One, typical)
    • • SAM card slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 230400bps)
    • • Display: 4 LED + LCD (128 * 64 pixel white back light)
    • • Buzzer: Build in
    • • RTC: Build in
    • • Data FLASH: 4 Mbytes (include font)
    • • Interface: USB PC/SC standard
    • • Power supply: DC5V ± 10%
    • • Power consumption: 0.9W
    • • Dimension: 142mm * 86mm * 22mm
    • • Weight: about 200g
    • • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
    • • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
    • • PC software: PCSC Communication Tool
    • • SDK: base on Windows, free
    • • Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
    • • ISP: Terms
    • • RoHS: Compliant


    Additional Information

    • Payment Terms L/C, T/TWestern Union
    • Port of DispatchCHINA
    • Packaging DetailsCARTON BOXES
    • Delivery TimeWithin 3 days after get the payment
