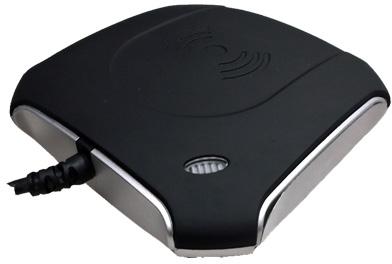

13.56mhz Rfid/nfc Mifare Reader/writer,USB, Iso14443a Standard

MOQ1 Set(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering 13.56mhz rfid/nfc mifare reader/writer,usb, iso14443a standard. Key features: adopts arm cortex m3 chipset available with 64kb flash memory and 20kb ram compliant with iso1443a,b....

View More Details

Send Enquiry

Company Information

Shenzhen Radio Iot Tech Co. Ltd

Shenzhen

View Number

Member Since 11 Years
Nature of Business Supplier
Year of Establishment 2012

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are offering 13.56mhz rfid/nfc mifare reader/writer,usb, iso14443a standard.
Key features:
adopts arm cortex m3 chipset
available with 64kb flash memory and 20kb ram
compliant with iso1443a,b standard
with 2 sam card socket, iso7816 protocol (optional)
multiple iso standard protocols conform
support contactless cpu cards；
usb working mode, plug and play
multi interface for options；
one buzzer and led indication
technical parameters:
parameters
frequency 13.56mhz
protocol isoiec 14443a, iso 7816 standard
cards support mifare one s50; mifare ultralight; mifare ones70, mifarepro, ntag 203205213215216
contactless cpu series cards
iso7816 standard sam cards (optional)
reading speed default 0.1s (adjustable by command)
port usbrs232rs485
baudrate 9600-115200bits(configurable,default 9600)
reading range 50~80mm (depend on tag size)
current
