Contact SupplierBasic parameters
sizeã�â¯ã�â¼ã¯â¿â½460 mm * 300 mm * 150 mm
weight: about 7 kg
working voltage: ac220v plus or minus 10% 50 hz
output voltage: dc24v
the number of channels: 1 to 10

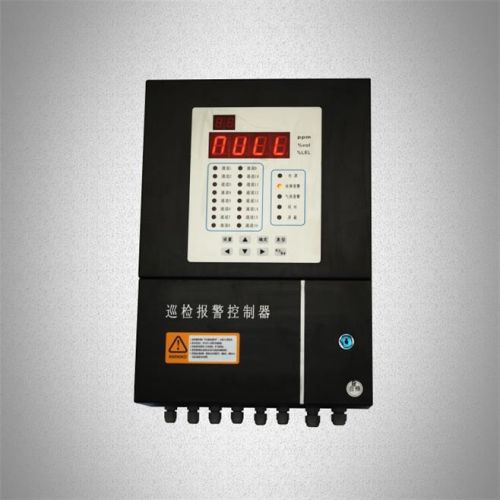

digital tube display mode: highlight inspection display mode
signal input: rs485 bus transmitter
communication interface:(optional) 1 road rs232 and rs485 bus interface
standard modbus rtu protocol or non-standard, can connect the computer monitor
measuring range: 0-9999 (numerical) can be set up
alarm way: first alarm more than 90 db alarm way;
second alarm more than 120 db
control output: 8 channel relay output,
distribution channel address, 1 bus relay output
temperature range: - 10 ã�â¢ã¯â¿â½ã¯â¿â½ to 50 ã�â¢ã¯â¿â½ã¯â¿â½
humidity: 15% ~ 70% rh (no condensation)
execution standard:thecombustible gas alarm controller gb16808-1997 technical requirements and test methods
installation method: wall-mounted installation.
